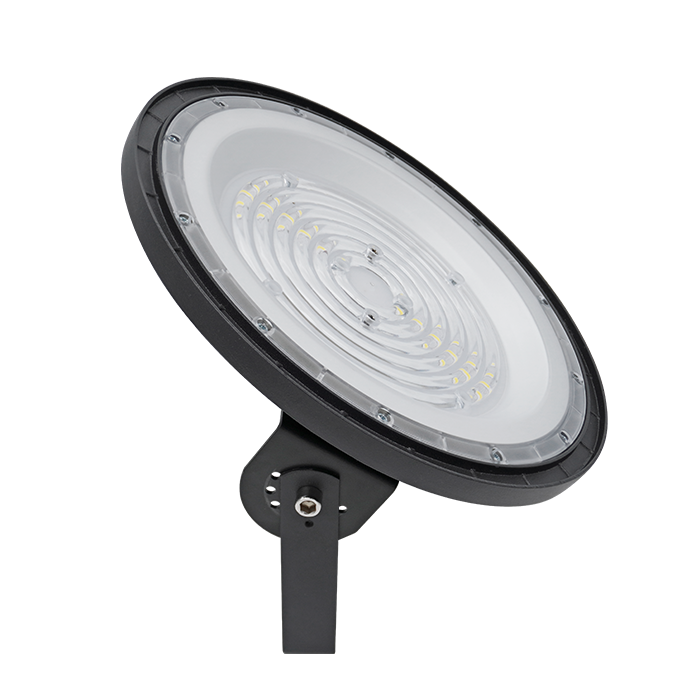

KELT

DOB High-Bay
Cost-Efficient Performance
180° Adjustable U-shaped Bracket
3 Installation Methods

  • EASY TO INSTALL

  • IP RATED

  • IK RATED

  • ENERGY GRADE

  • WARRANTY

  • ROHS

  • CERTIFICATION

PRODUCT Features

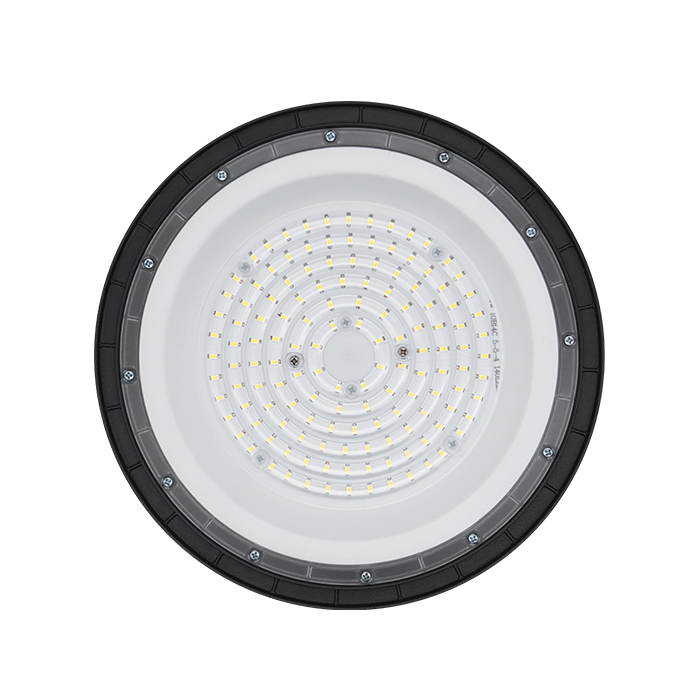

  • LED Source Type: SMD 2835
  • Driver Type: LC Driver
  • Material: Die-cast Aluminum+PC Lens
  • Color Rendering Index: Ra>80
  • Color Temperature: 3000K/4000K/6000K
  • Angles of Lens: 90°
  • Color of housing: Black

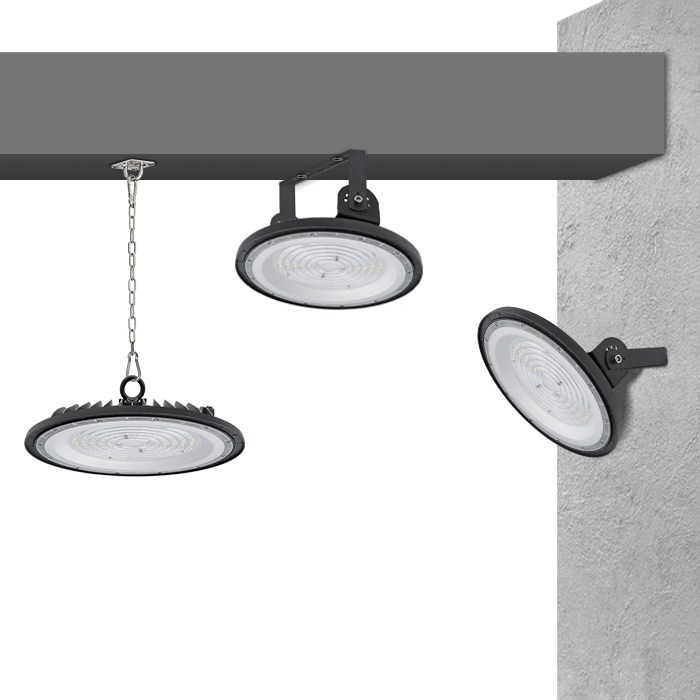

  • Mounting: Loop Hanging/Ceiling /Wall
  • Lifespan: 30, 000 Hrs
  • Warranty: 3 years

MORE DETAIL

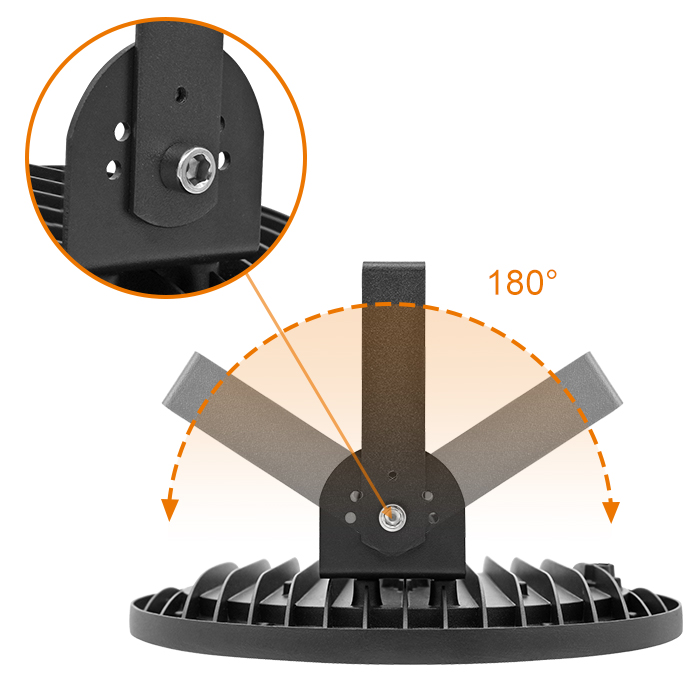

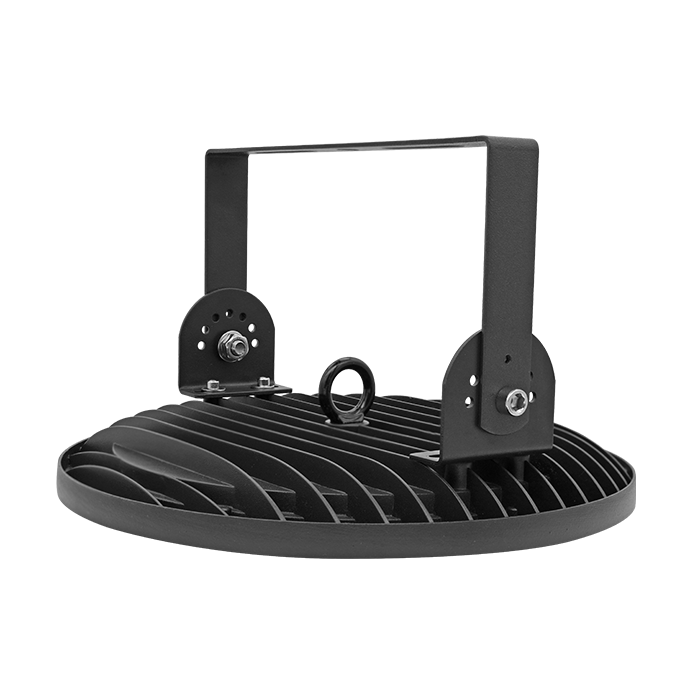

  • 180° Adjustable U-shaped BracketAllows flexible beam direction for targeted illumination in diverse industrial settings

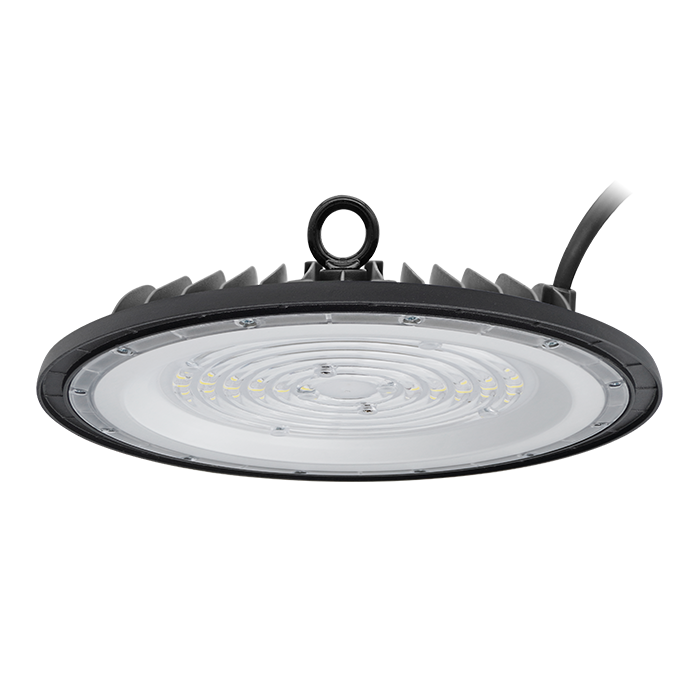

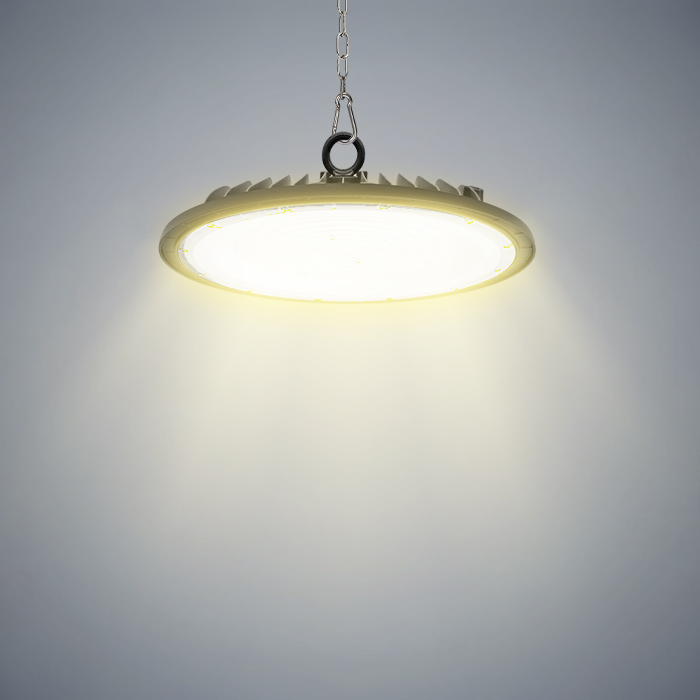

  • Hanging Easy InstallationFast installation with easy chains and fitting parts for hook.

  • Up to 120lm/W High Efficiency LED Chips Equipped with high-performance LED chips delivering up to 120lm/W, ensuring bright, energy-saving illumination with consistent quality and long lifespan.


  • IP65 Waterproof & IK08 Impact ProtectionRugged and reliable with IP65 dust and water resistance plus IK08-rated impact protection for harsh industrial environments.

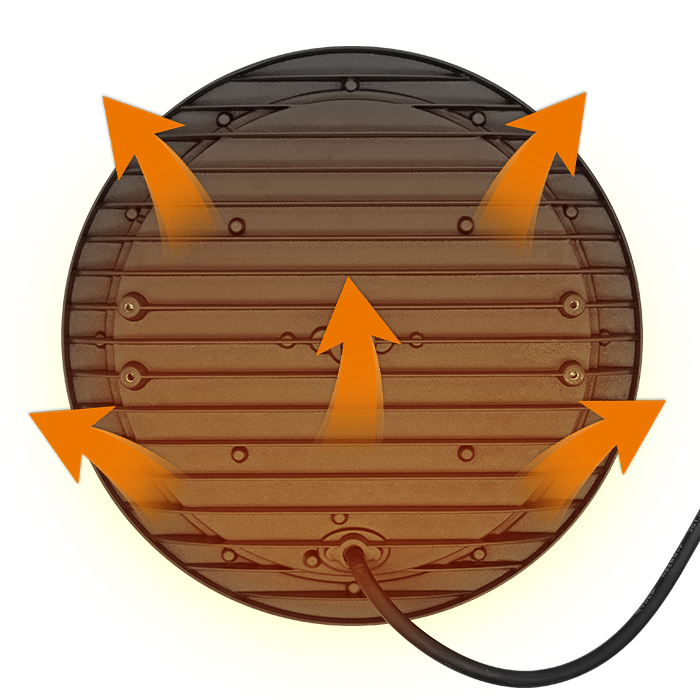

  • Efficient Heat DissipationThe die-cast aluminum housing with powder coating ensures excellent heat management, keeping the housing center cool for extended product life.

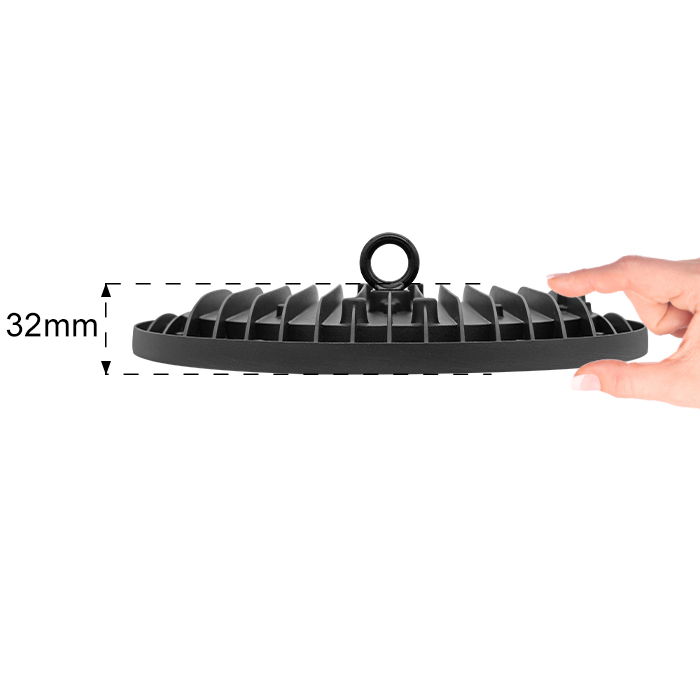

  • Ultra-Slim DesignWith a slim 32mm body, this modern design is perfect for any space, offering extra headroom and ideal for low ceilings.

TECHNICAL SPECIFICATIONS

Swipe right to view

Item.NO Voltage(V) Power(W) Color Consistency (Sdcm) Luminous Efficacy Beam Angle CRI DF Dimension(L*W*H)(mm)
HB2402-100-E AC220-240V 100W <6 120LM/W 90° >80 >0.9 Ø256.5*84
HB2402-150-E AC220-240V 150W <6 120LM/W 90° >80 >0.9 Ø296*84
HB2402-200-E AC220-240V 200W <6 120LM/W 90° >80 >0.9 Ø357.5*84
HB2402-300-E AC220-240V 300W <6 120LM/W 90° >80 >0.9 Ø400*84
HB2403-100-E AC220-240V 100W <6 100LM/W 90° >80 >0.9 Ø256.5*84
HB2403-150-E AC220-240V 150W <6 100LM/W 90° >80 >0.9 Ø296*84
HB2403-200-E AC220-240V 200W <6 100LM/W 90° >80 >0.9 Ø357.5*84
HB2403-300-E AC220-240V 300W <6 100LM/W 90° >80 >0.9 Ø400*84

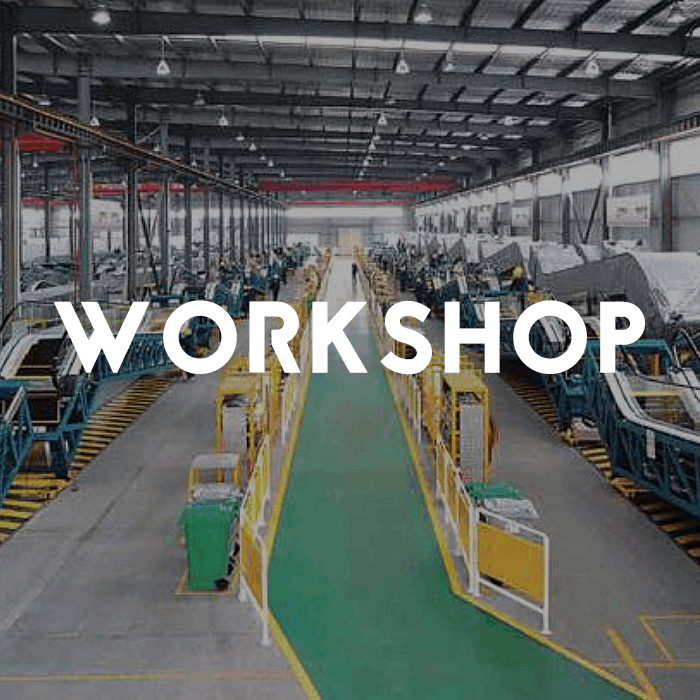

APPLICATION
