HAJA

3 CCT ADJUSTABLE

3 POWER CHANGEABLE

VERSATILE DESIGN OPTIONS: ROUND & SQUARE

AVAILABLE IN SURFACE AND RECESSED MOUNTING

HIGH-DURABILITY PC: HEAT-RESISTANT & LONG-LASTING

  • Easy To Install

  • CCT Changeable

  • Non Dimmable

  • Flicker Free

  • IP Rating

  • Angle Adjustable

  • Class Ⅱ

  • Certifications

PRODUCT Features

  • LED SourceType: SMD 2835
  • Driver Type: LC Driver
  • Material: High-impact PC
  • CRI: Ra>80
  • DF: ≥0.7
  • Color of Housing: White
  • Beam Angle: 48°

MORE DETAIL

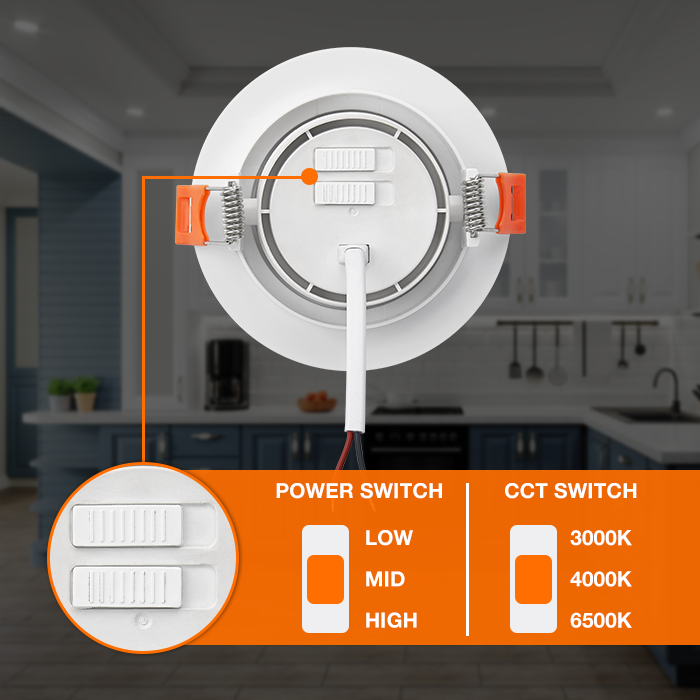

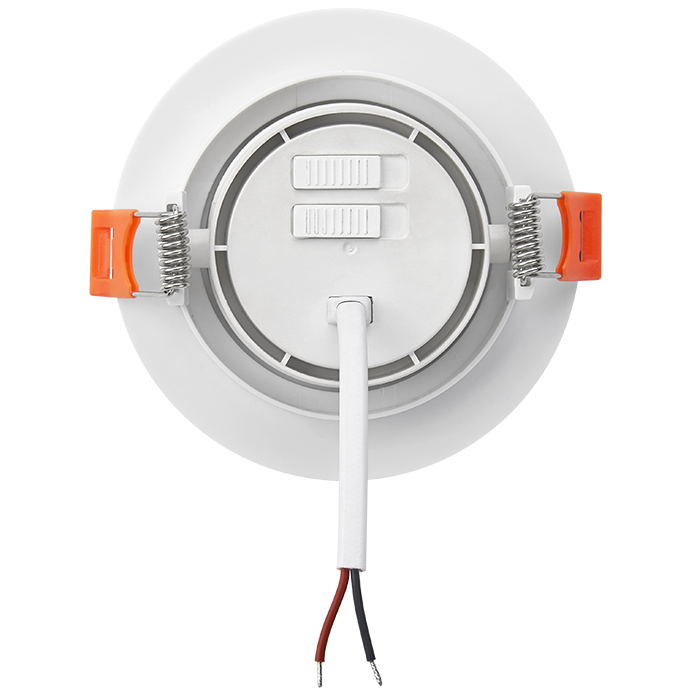

  • 3 Power Selectable by DIP Switch Equipped with DIP switch for 4 power levels, ensuring adaptability to different energy-saving needs.

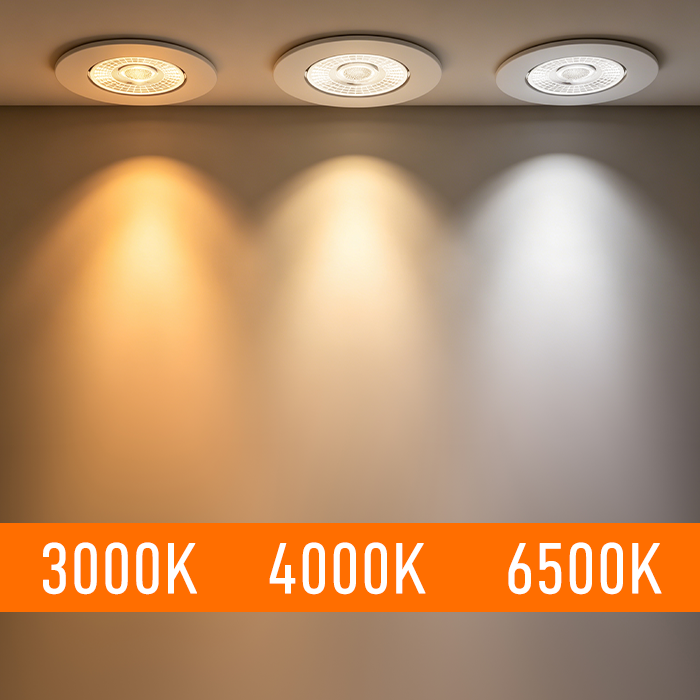

  • 3 CCT Adjustable by DIP Switch Streamline your inventory with on-site, switch-selectable color temperatures. Achieve perfect lighting versatility for any project with this single, high-performance solution.

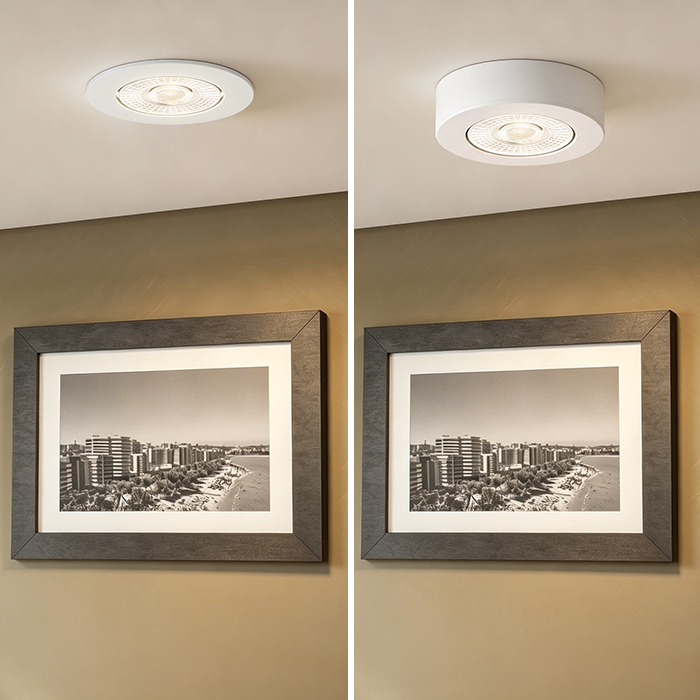

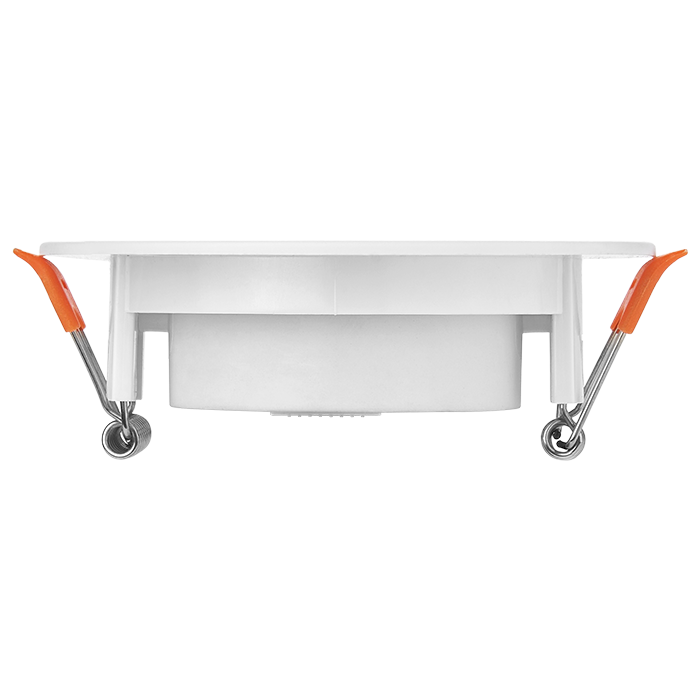

  • Available in surface-mounted and recessed Designed to fit any architectural requirement, our downlight is available in both surface-mounted and recessed versions, ensuring a seamless, high-end finish for any ceiling type.


  • FLICKER-FREE: SUPERIOR VISUAL COMFORT Ensure professional-grade lighting and maximum visual comfort. Engineered for a steady, constant output, this downlight eliminates distracting flicker to provide a seamless, high-quality environment for any space.

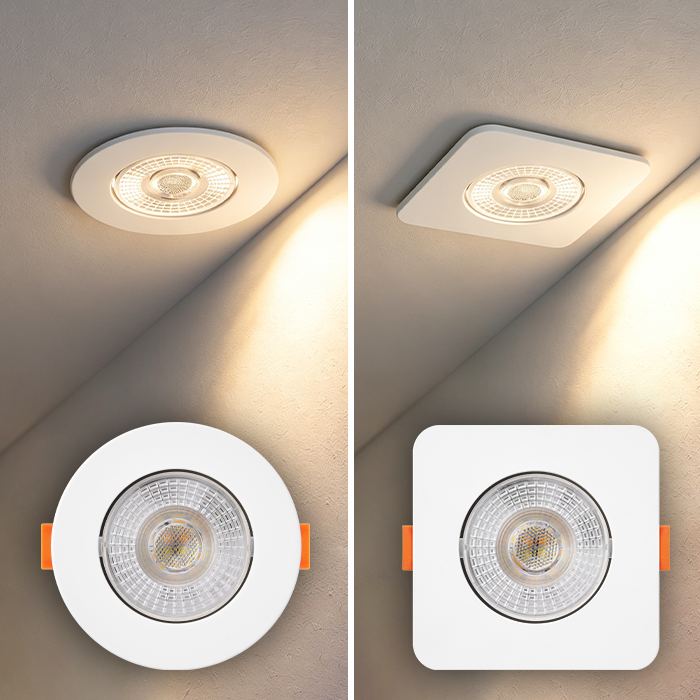

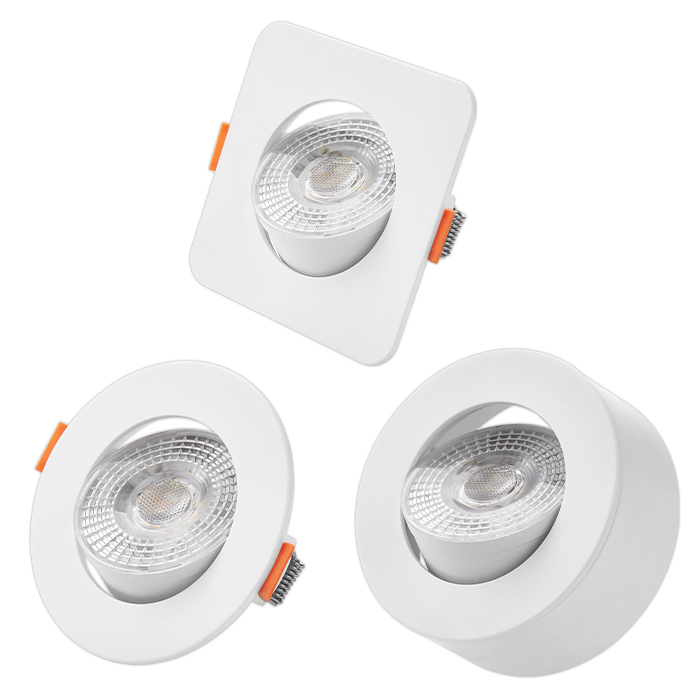

  • Versatile Design Options: Round or Square Achieve a cohesive aesthetic across any project. Our downlights are available in both round and square profiles to perfectly match your architectural design.

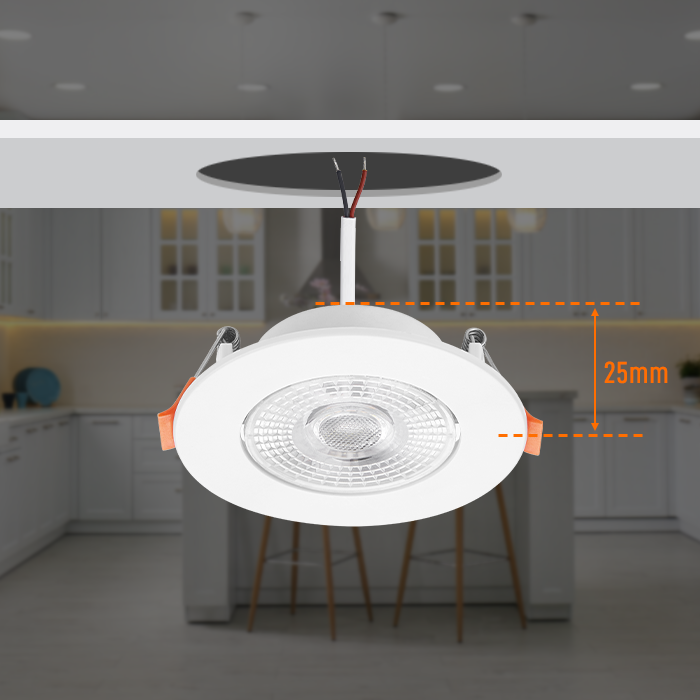

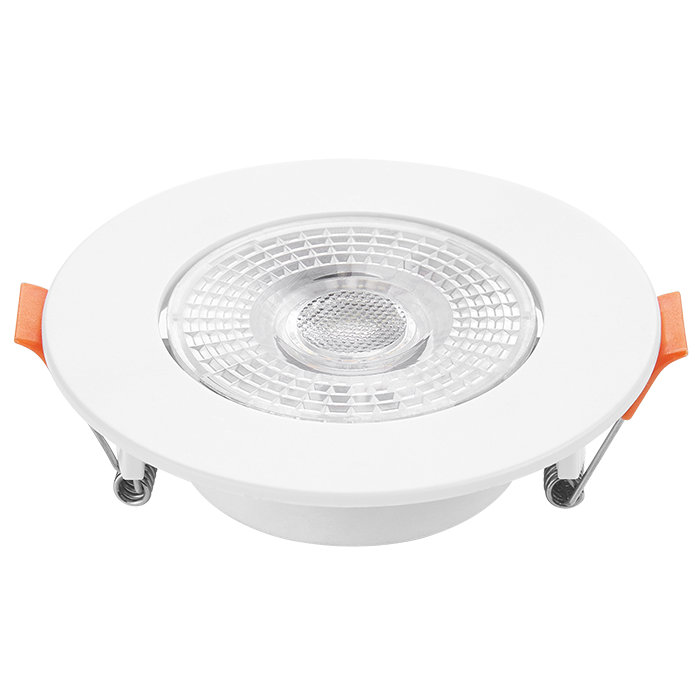

  • Ultra-Slim 25mm Recessed Depth The recessed version requires only a 25mm mounting depth, making installation very convenient.

TECHNICAL SPECIFICATIONS

Swipe right to view

Item No. Voltage(V) Wattage(W) Luminous Efficacy Beam Angle CRI CCT Driver Material Dimension Cut-hole Size
DL4301 AC 220-240V 3W-5W-7W 90lm/W 48° ＞80 3000K/ 4000K/ 6500K Linear Driver PA+ Aluminum+ PC Ø90*25mm Ø80
DL4302 AC 220-240V 3W-5W-7W 90lm/W 48° ＞80 3000K/ 4000K/ 6500K Linear Driver PA+ Aluminum+ PC 90*90*25mm Ø80
DL4303 AC 220-240V 3W-5W-7W 90lm/W 48° ＞80 3000K/ 4000K/ 6500K Linear Driver PA+ Aluminum+ PC Ø90*30mm /

APPLICATION
