FORTUNE

9 SKU in 1
DOB High-Bay Light

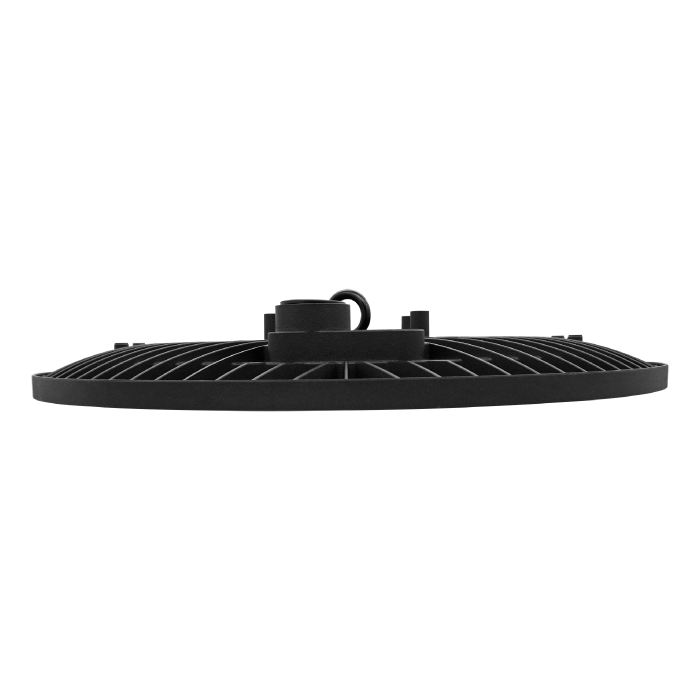

47mm Ultra-Slim Design
3 Power & 3 CCT Changeable
3H Plug & Play Emergency Pack

  • CCT CHANGEABLE

  • POWER CHANGEABLE

  • thickness

  • waterproof rating

  • IK08

  • WARRANTY

  • ENERGY GRADE

PRODUCT Features

  • LED Source Type: SMD 2835
  • Driver Type: DOB IC Driver or DOB Linear Driver
  • Material: Die-cast Aluminium + PC
  • CRI: Ra>70 or Ra>80
  • Color of Housing: Black / White / Grey
  • Mounting: Loop Hanging / Ceiling Mounting / Wall

MORE DETAIL

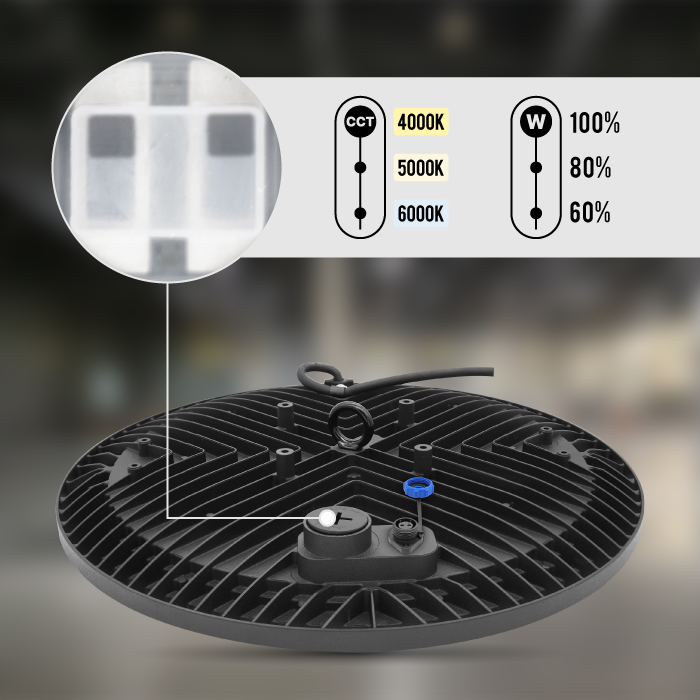

  • 23 POWER & 3 CCT SELECTABLEFORTUNE High-Bay Light offers a 3-in-1 Power & CCT adjustable solution, allowing for flexible application in various locations. This versatility facilitates better stock distribution for customers, reducing the risk of inventory backlog

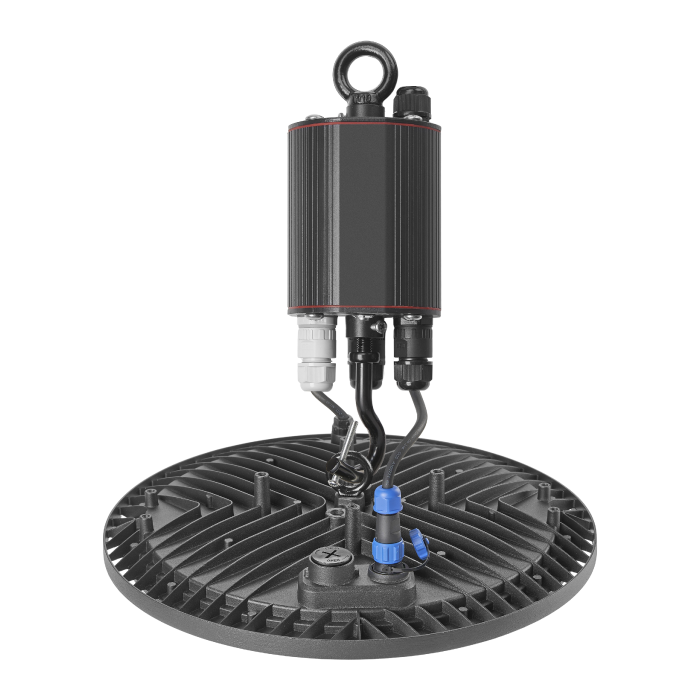

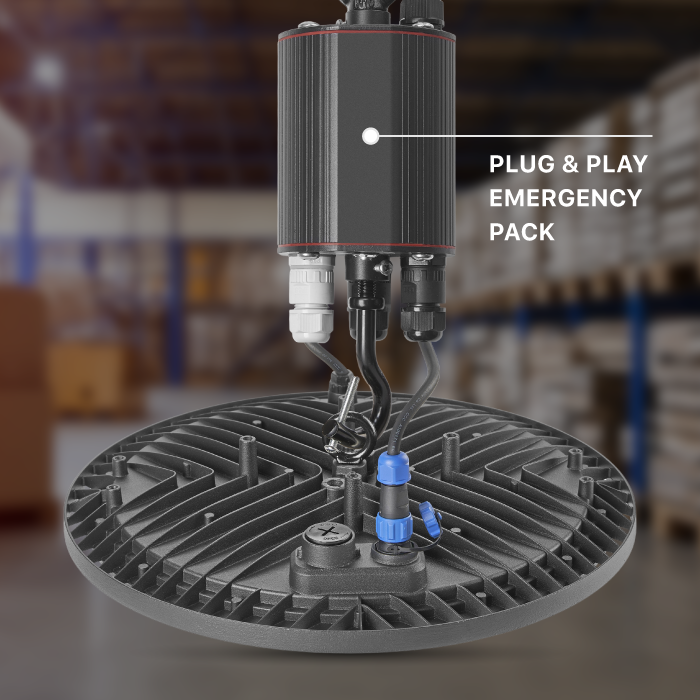

  • PLUG & PLAY 3H EMERGENCY PACKThe external emergency pack can be directly plugged in for quick installation, providing up to 3 hours of backup lighting during power outages

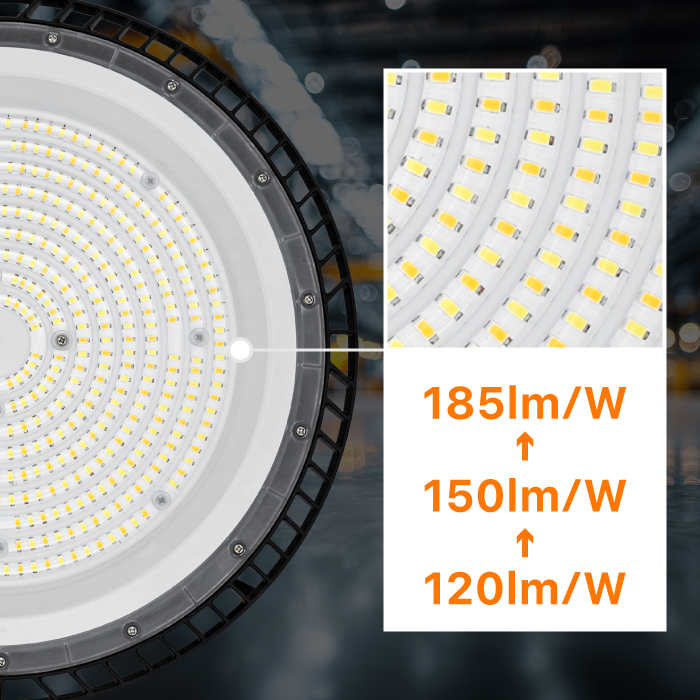

  • HIGH EFFICIENCY UP TO 185LM/W Equipped with high-performance LED chips delivering up to 185lm/W, enduring bright, energy-saving illumination with consistency quality and long lifespan.

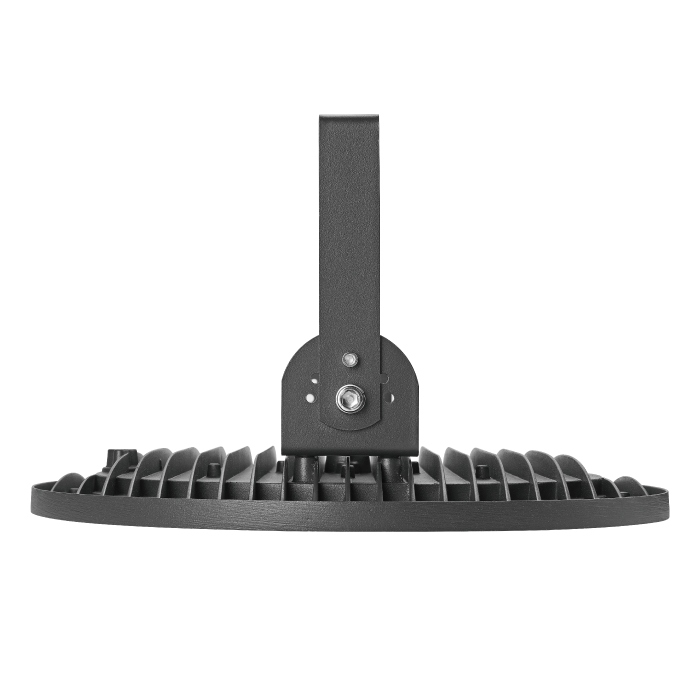

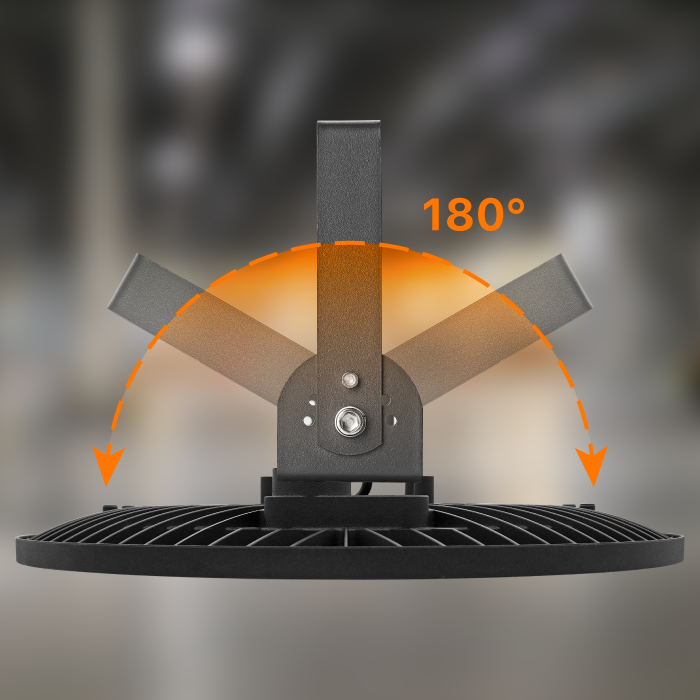

  • 180° ADJUSTABLE U-SHAPED BRACKETThis bracket design enables flexible beam direction, allowing for targeted illumination in various industrial environments.

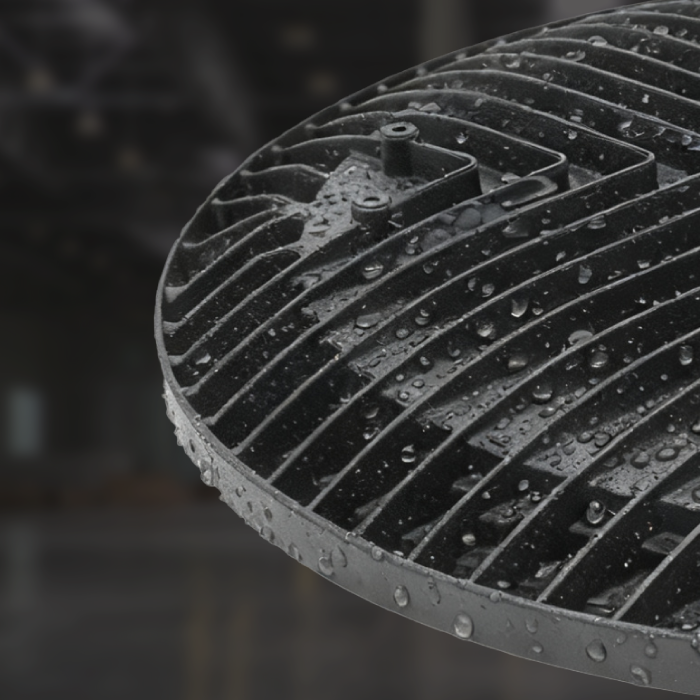

  • IP65 & IK07 RATEDDurable and dependable, featuring IP65 dust and water resistance, along with IKO7-rated impact protection, ideal for harsh industrial environments.

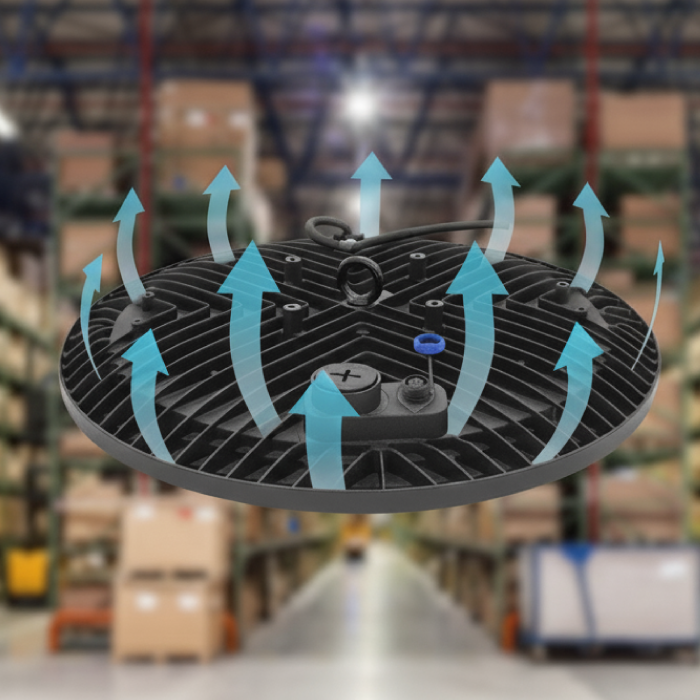

  • EFFICIENT HEAT DISSIPATIONThe die-cast aluminum housing with powder coating ensures excellent heat management, keeping the housing center cool for extended product life.

TECHNICAL SPECIFICATIONS

Swipe right to view

Item.NO Voltage(V) Power(W) Luminous Efficacy Beam Angle CRI DF CCT Dimension(L*W*H)(D*H)(mm)
HB25D-10APC AC 220-240V 100W-80W-60W 120/150/185 lm/W 90°/120° >＞80 >≥0.9 >4000K/5000K/6000K Ø245*47mm
HB25D-15APC AC 220-240V 150W-120W-90W 120/150/185 lm/W 90°/120° >＞80 >0.95 >≥4000K/5000K/6000K Ø280*47mm
HB25D-20APC AC 220-240V 200W-160W-120W 120/150/185 lm/W 90°/120° >＞80 >≥0.9 >4000K/5000K/6000K Ø320*47mm

APPLICATION
