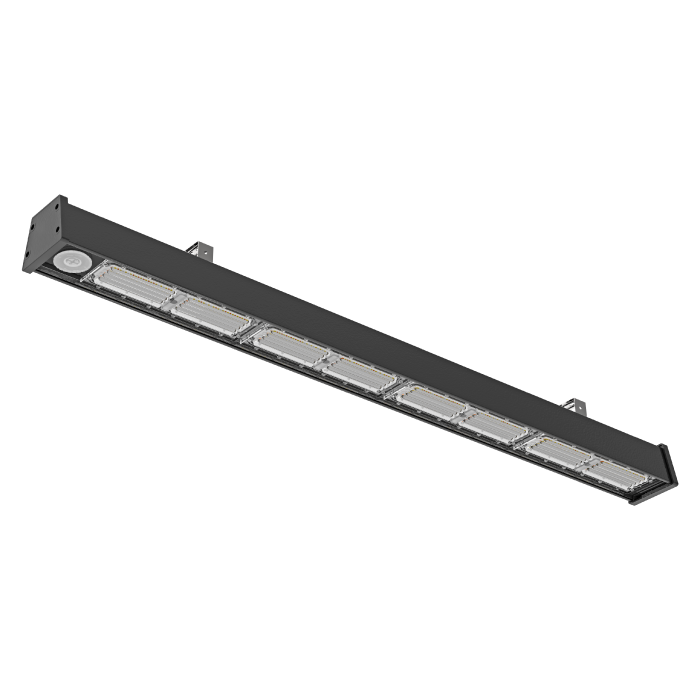

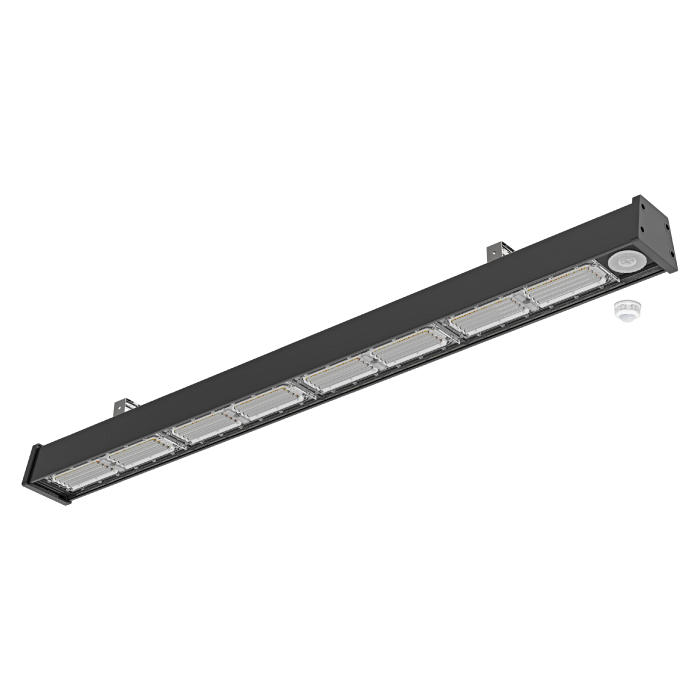

NYSA
Modular Lens
CCT & Power Adjustable
Plug & Play Sensor
scroll down
3 CCT ADJUSTABLE
POWER ADJUSTABLE
MICROWAVE SENSOR
LINKABLE
IP65
IK08
YEARS
ENERGY GRADE
PRODUCT Features
- LED Source Type: SMD 2835
- Driver Type: IC Driver
- Material: Aluminium Alloy + PC Lens
- CRI: Ra>80
- DF: ≥0.9
- Color of Housing: Grey / Black
- Mounting: Surface / Suspension
MORE DETAIL
-

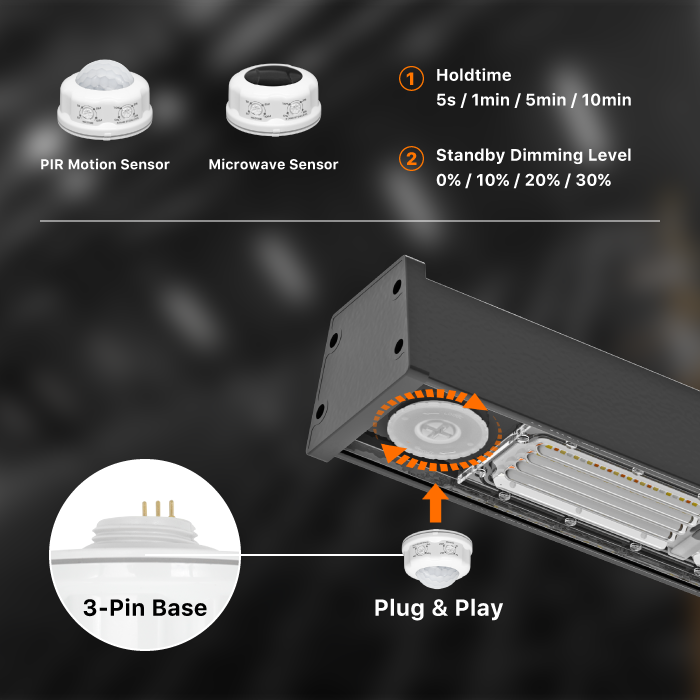

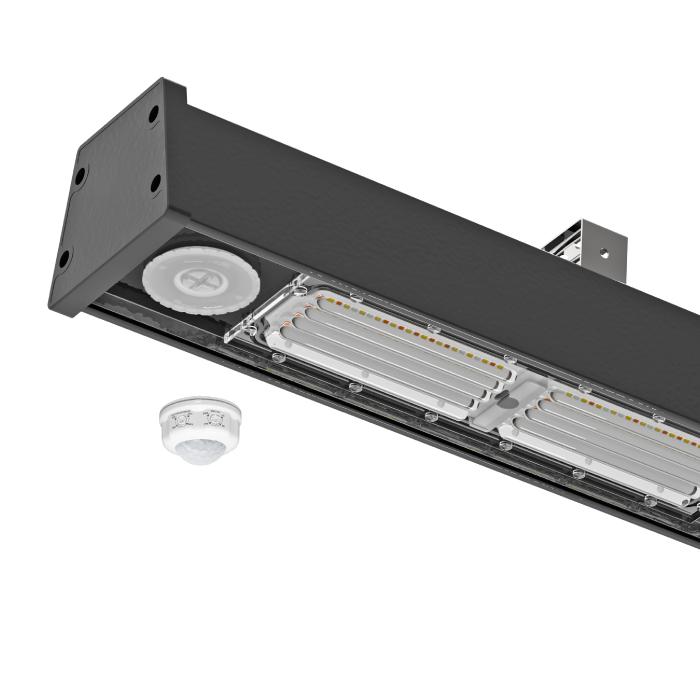

Quick Plug-in Sensor for OptionFeatures a quick-connect interface for instant sensor integration. Easily enable motion sensing and daylight harvesting to further reduce energy costs.
-

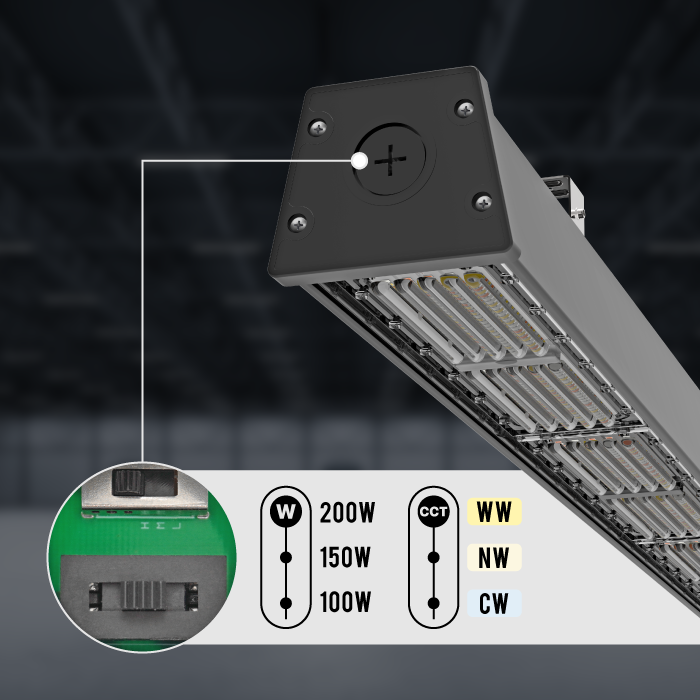

3-CCT & 3-Power Selectable1 SKU replaces 9 traditional models. Slash your inventory by 80% while staying ready for any project demand. 200W-150W-100W | WW-NW-CW
-

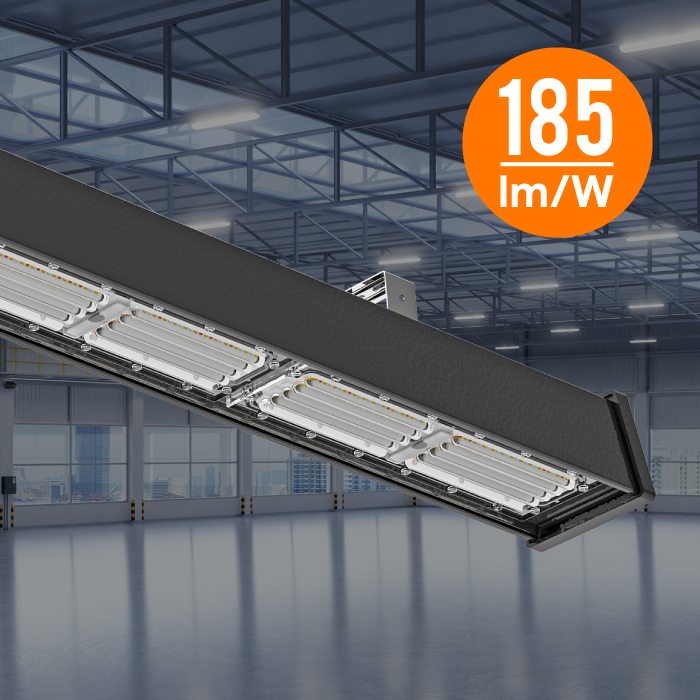

Up to 185lm/W, Optimal Light with Minimal Energy This Linear High Bay delivers up to 185lm/W B-Class, providing optimal light while using minimal energy.
-
Aerospace-grade Aluminum, IP65 & IK08 Rated Dust-free structure prevents thermal decay, while IP65 waterproof and IK08 impact resistance ensure stable performance in harsh environments. A true 50,000hr maintenance-free lifespan for maximum reliability.
-

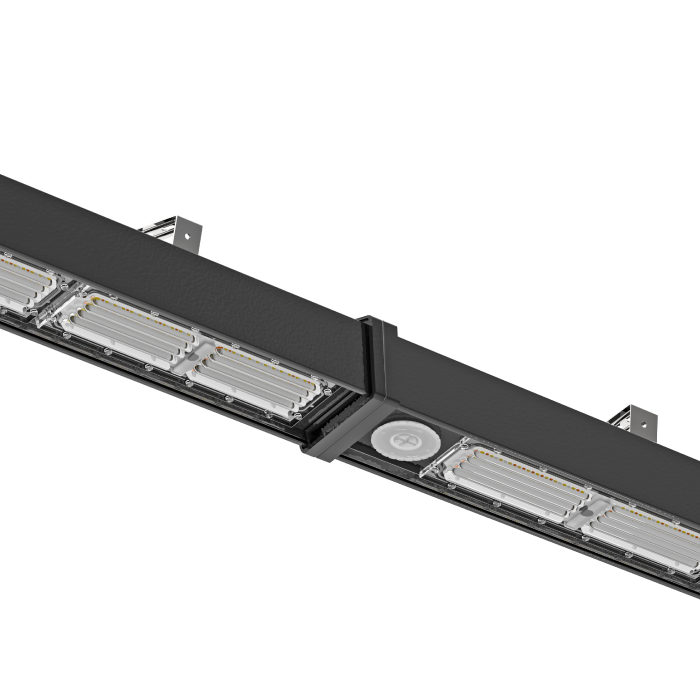

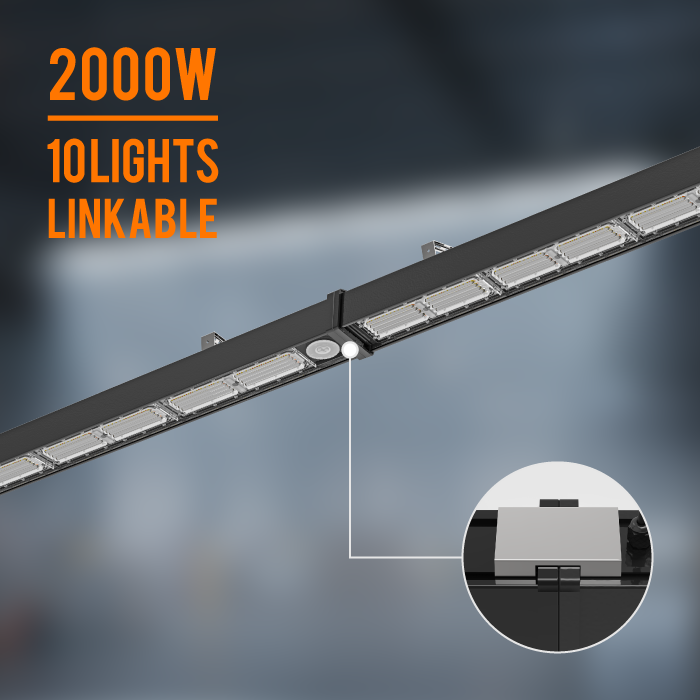

Fast Connection with 2000W 10PCS LinkableQuick-connect up to 10 units (2000W Max). Drastically reduces installation time and wiring complexity for large-scale retrofits. lifespan.
-

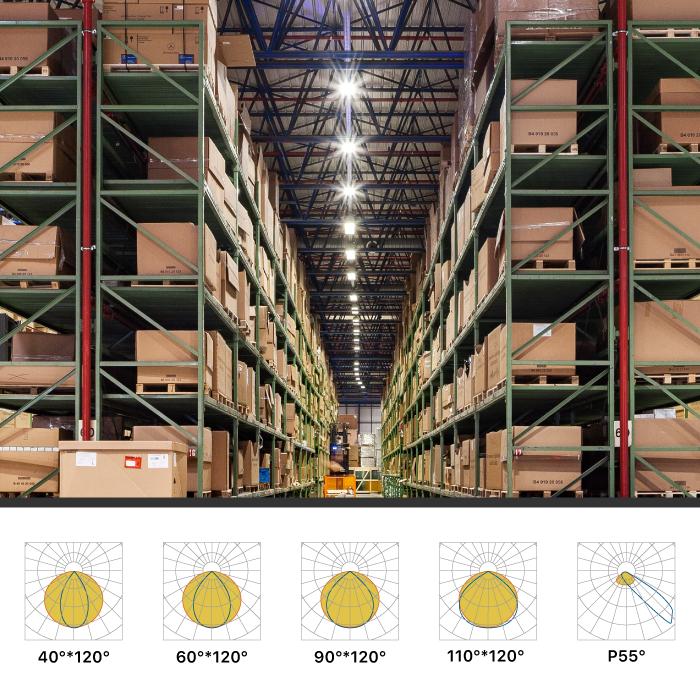

5-in-1 Interchangeable OpticsOne fixture, infinite lighting layouts—from high-rack aisles to wide open halls.
TECHNICAL SPECIFICATIONS
Swipe right to view
| Product | Item.NO | Voltage(V) | Power(W) | Luminous Efficacy | Beam Angle | CRI | DF | Dimension (L*W*H) |
| NYSA | LR22APC-12200B | AC 220-240V | 100W-150W-200W | 185 lm/W | 90° | ＞80 | ≥0.9 | >1148*98*78mm |
| NYSA | LR22AP-12200B-9S01 | AC 220-240V | 100W-150W-200W | 185 lm/W | 90° | ＞80 | >≥0.9 | >1148*98*78mm |
APPLICATION
