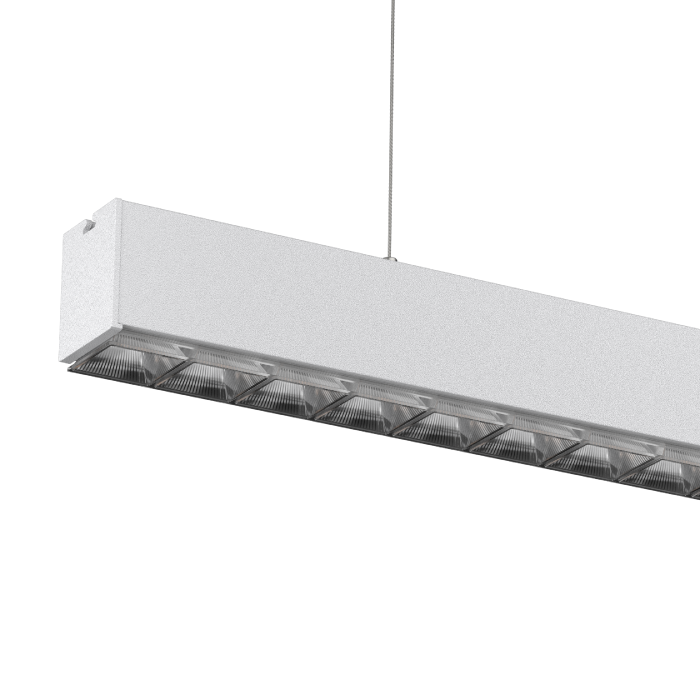

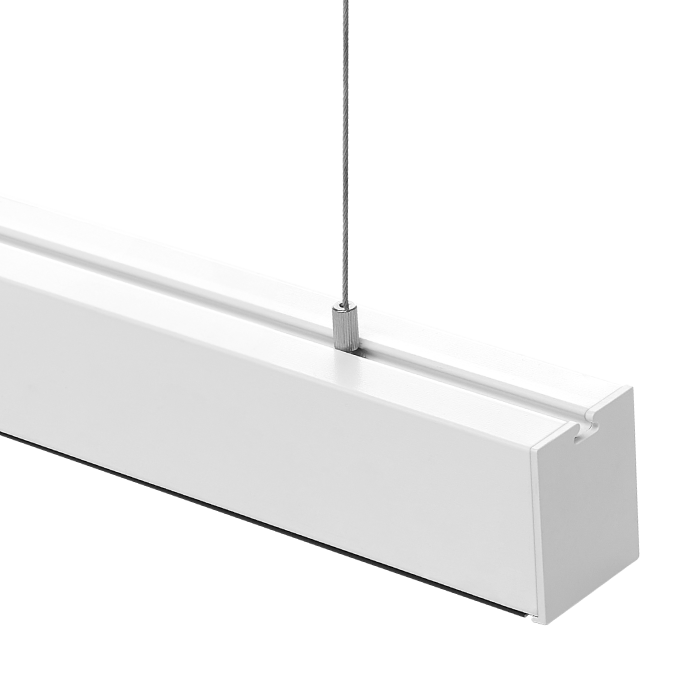

HEBE

Multiple Splicing

3 Optical Options

3 CCT & 3 Power Adjustable

Premium PPGI Material for more Eco-friendly & Cost-Effective

Frameless Design & Screwless Exterior

  • CCT ADJUSTABLE

  • POWER ADJUSTABLE

  • IP RATED

  • LINKABLE

  • FLICKER FREE

  • WARRANTY

  • Certification

PRODUCT Features

  • LED SourceType: SMD 2835
  • Driver Type: IC Driver
  • Material: PPGI + PC
  • CRI: ≥80
  • DF: ＞0.9
  • Color of Housing:Black / White
  • Mounting:Suspended / Surface / Ceiling / Grille Ceiling

MORE DETAIL

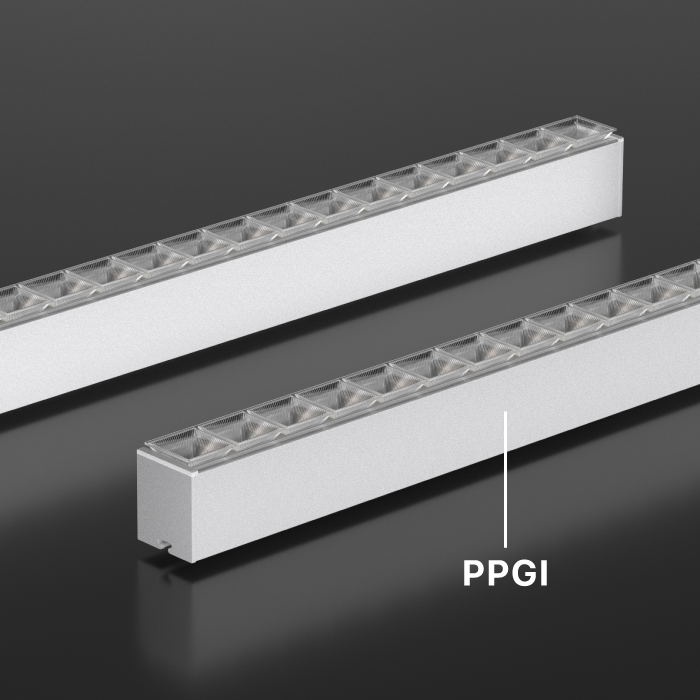

  • Premium PPGI Material for more Eco-friendly & Cost-Effective Crafted from appliance-grade PPGI(Prepainted galvanized steel coils) prepainted galvanized steel, reducing weight by 40% and carbon emissions by 58%. Its aluminum-like appearance and similar functionality allow for a 20-25% price premium.

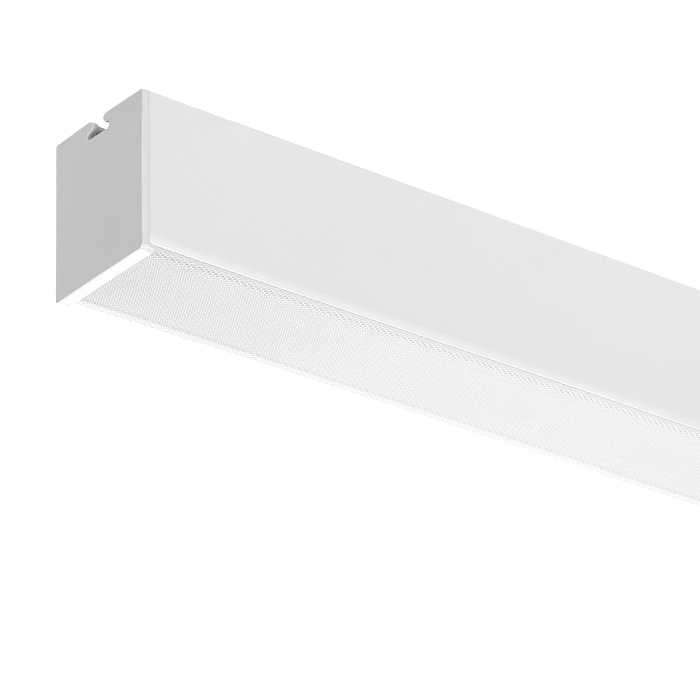

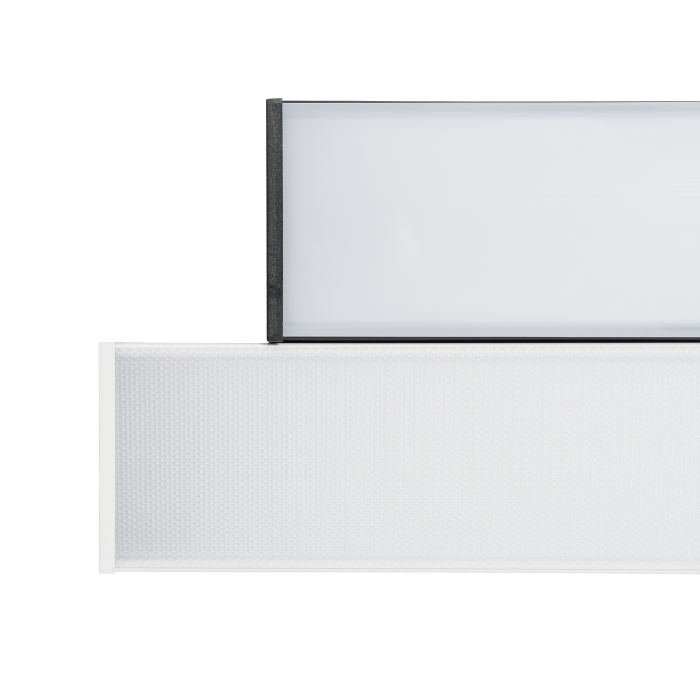

  • Frameless Design & Screwless Exterior This frameless light appears to magically float on your wall. Its seamless design and hidden screws create a stunning, uninterrupted aesthetic.

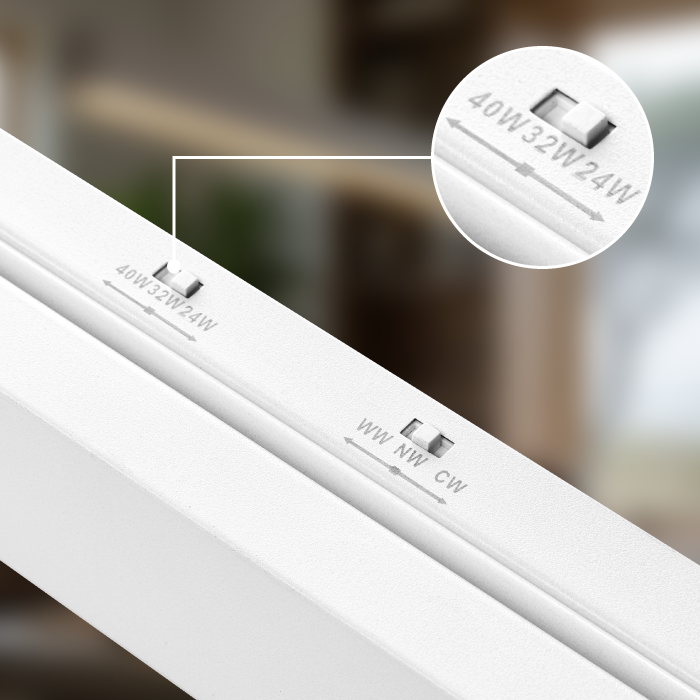

  • 3 Power Adjustable Output power can be adjusted to meet different requirements, offering flexible lighting control and energy efficiency for any project.

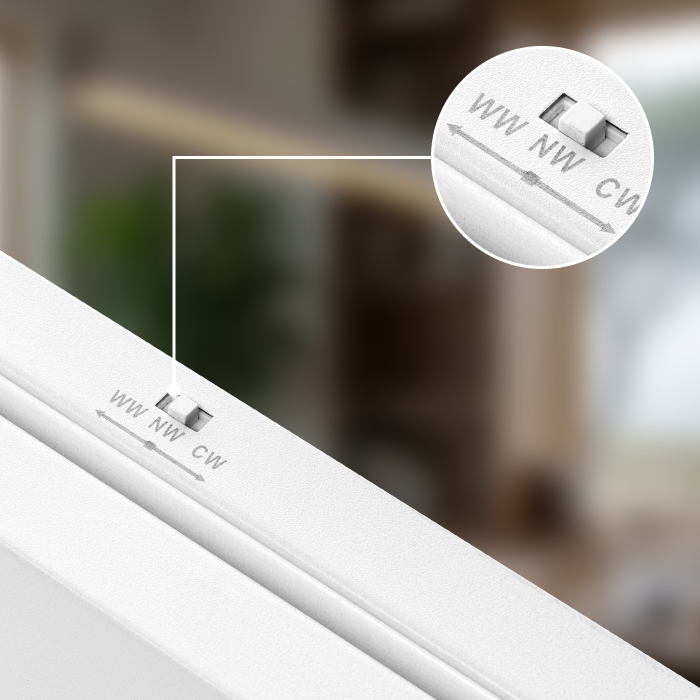

  • 3 CCT Selectable Three convenient color temperatures let you perfectly match existing lighting, creating the desired ambiance in any space.

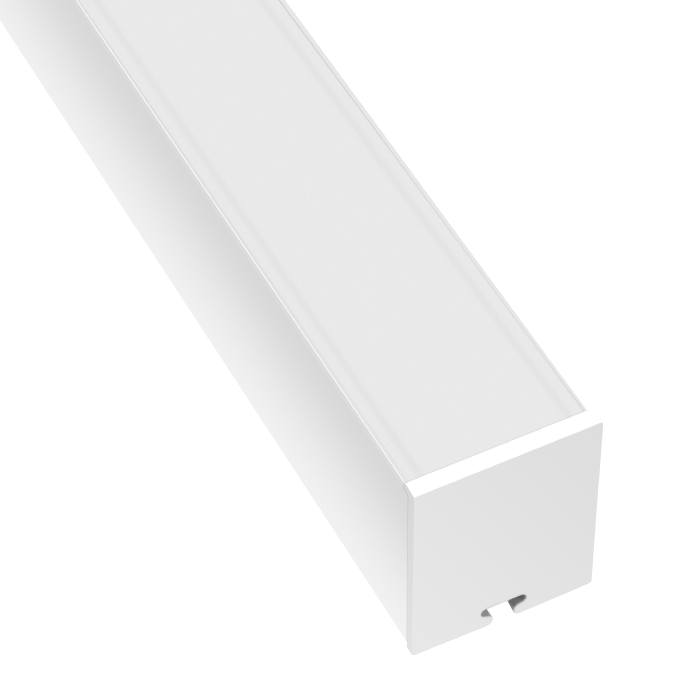

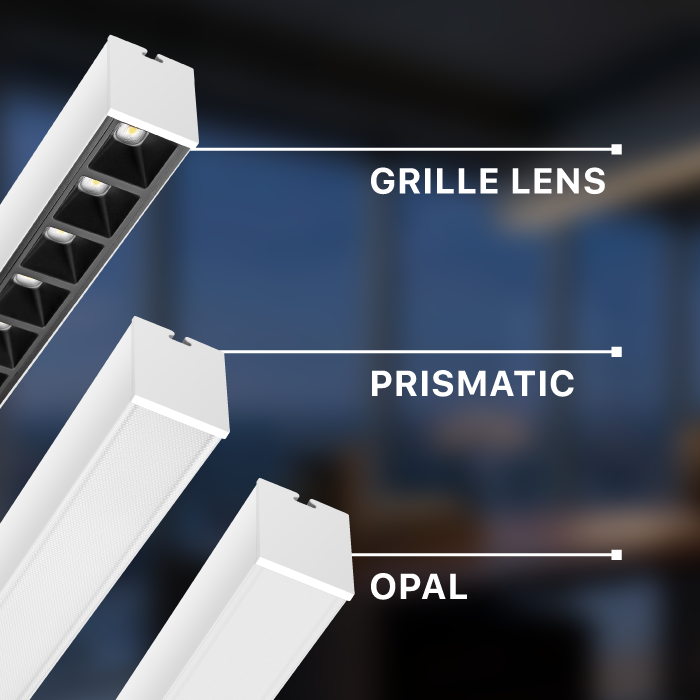

  • 3 Optical Options Selectable lens, grille, or PC diffuser for tailored light distribution and superior visual comfort (UGR≤16/19).

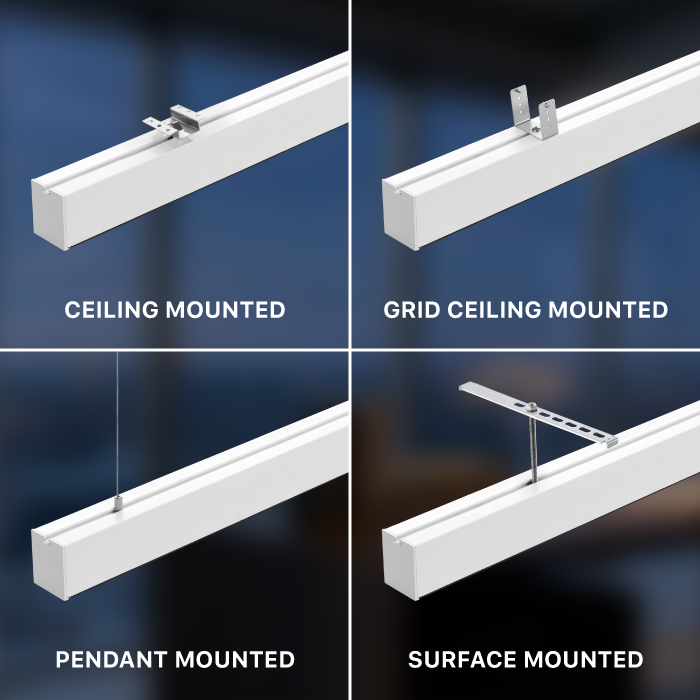

  • 4 Installation Methods Ceiling mounted, surface mounted, grid ceiling mounted, and pendant mounted – offering flexible installation for different spaces.

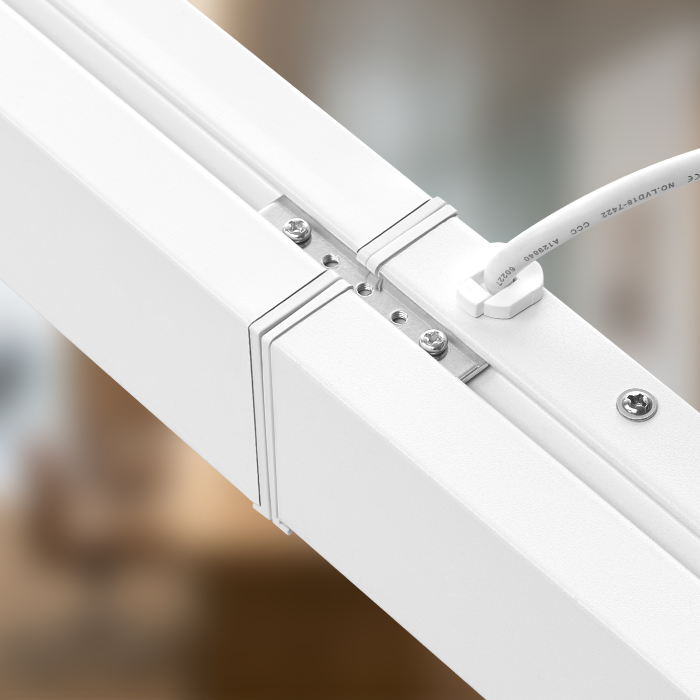

  • Splicing installation Luminaires can be seamlessly spliced together, creating continuous light lines and flexible layouts for different spaces.

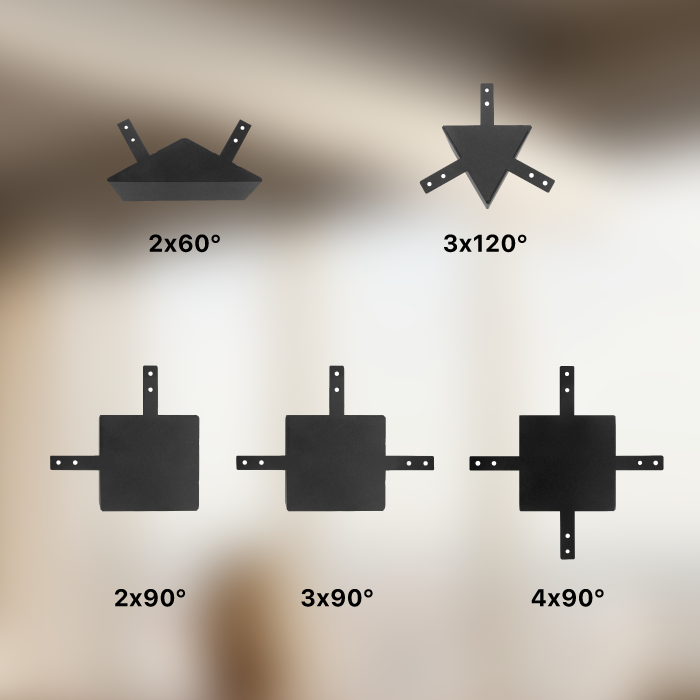

  • Multiple Splicing Options Supports multiple splicing forms such as L-shape, square, or continuous lines, creating diverse lighting designs for any space.

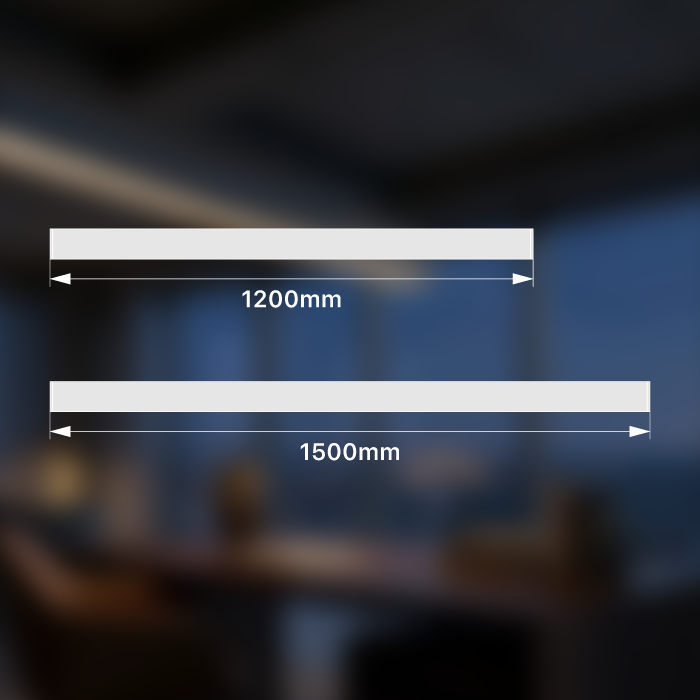

  • 2 Length Options Available in 1200mm and 1500mm, easily combined to match various space requirements.


TECHNICAL SPECIFICATIONS

Swipe right to view

Item No Voltage(V) Power(W) Efficacy Beam Angle CRI Dimensions(L*W*H)
LN1101-5060O-40 AC 220-240V 40W 100 lm/W 120° ＞80 1200*50*60mm
LN1101-5060O-50 AC 220-240V 50W 100 lm/W 120° ＞80 1500*50*60mm
LN1102-5060O-40 AC 220-240V 24W-32W-40W 100 lm/W 120° ＞80 1200*50*60mm
LN1103-5060O-40 AC 220-240V 24W-32W-40W 100 lm/W 120° ＞80 1500*50*60mm
LN1101-5060G-40 AC 220-240V 40W 90 lm/W 60° ＞80 1150*50*60mm
LN1104-5060G-40 AC 220-240V 40W 90 lm/W 60° ＞80 1440*50*60mm

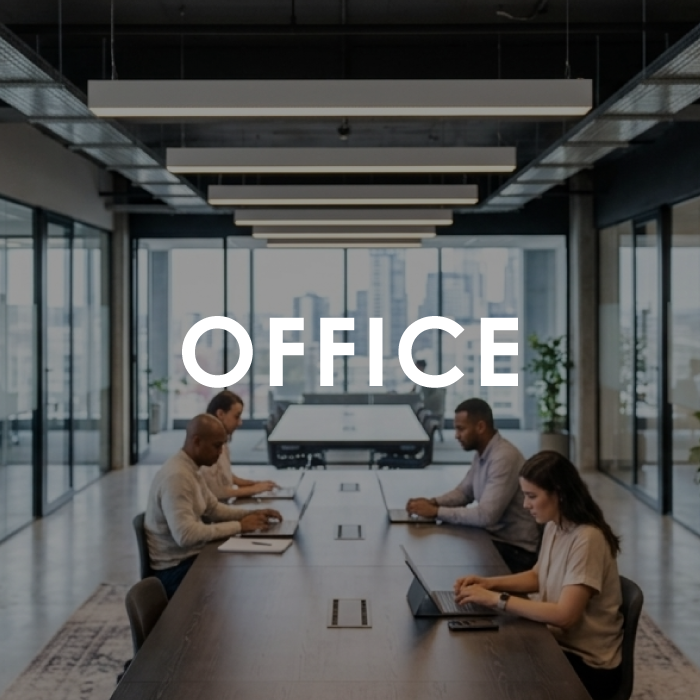

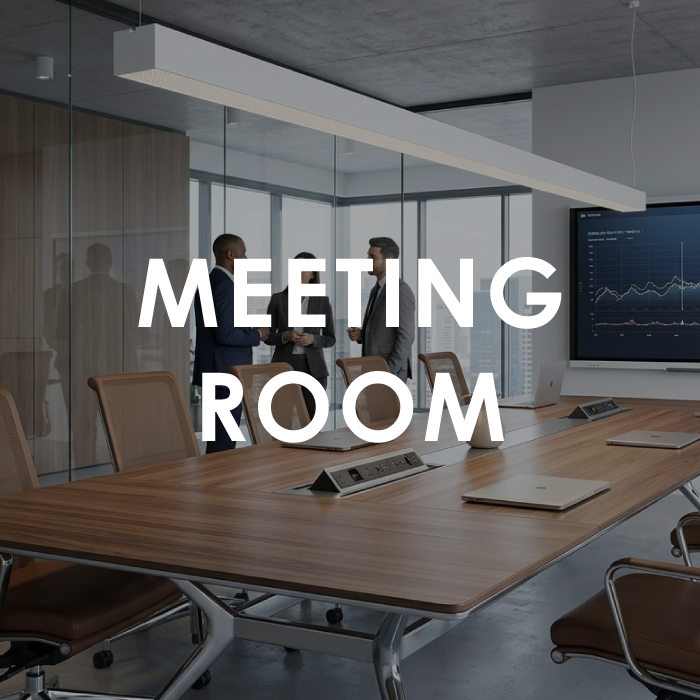

APPLICATION
