INO

3 Length Customizable

5/6/7/8/12-PIN Optional

Connection Power Max. 2500W

  • CCT ADJUSTABLE

  • POWER ADJUSTABLE

  • MICROWAVE SENSOR

  • LINKABLE

  • FLICKER FREE

  • WARRANTY

  • ENERGY GRADE

  • Certification

PRODUCT Features

  • LED SourceType: SMD 2835
  • Driver Type: IC Driver
  • Material: Aluminum +PC
  • CRI: Ra>80
  • DF: ≥0.9
  • Color of Housing:White / Black

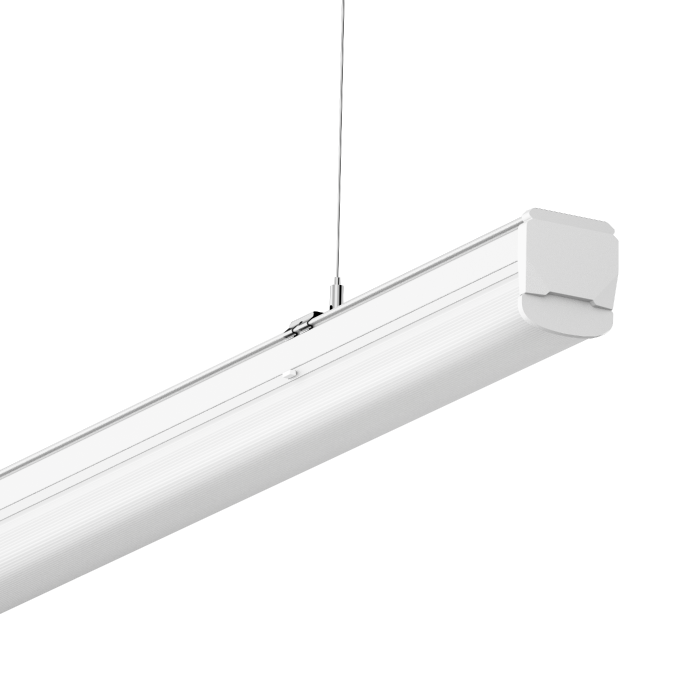

  • Mounting: Surface / Suspension

MORE DETAIL

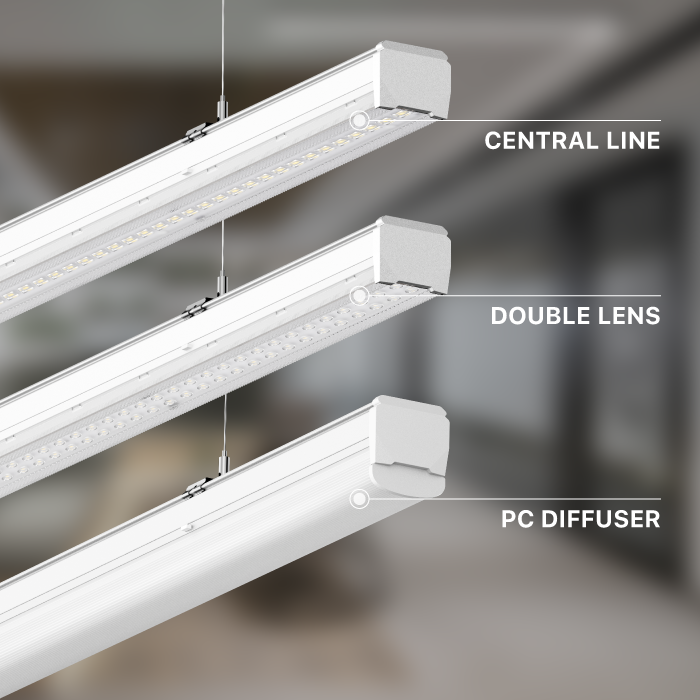

  • 3 Optical Lens Optional Choose from three precise optical solutions to meet different lighting needs: Central Line Optic Double Line Optic PC Cover Diffuser

  • Customizable Sizes for Perfect Fit & Cost Savings Our trunking is roll-formed to any length from 0.75m up to 3m, with the standard 1.5m unit ideal for most projects. This tailoring minimizes cutting waste on-site, ensures a perfect fit for your design, and reduces overall project costs.

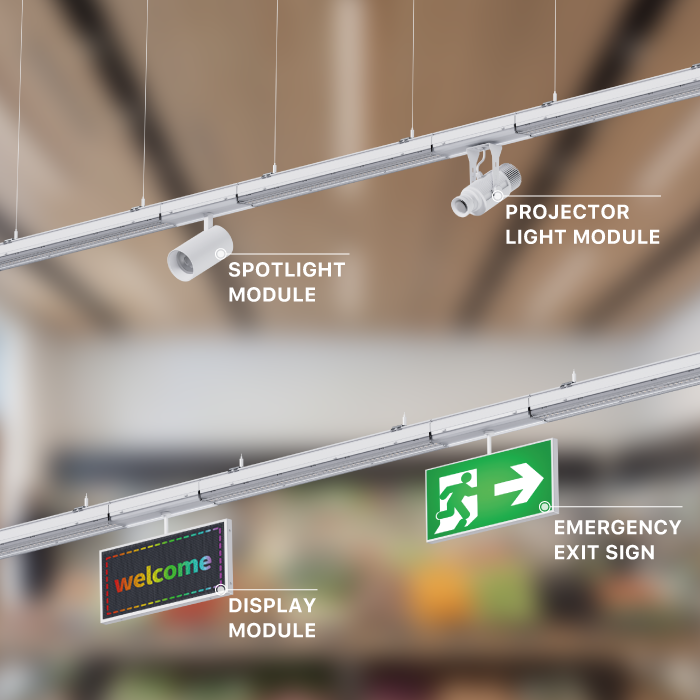

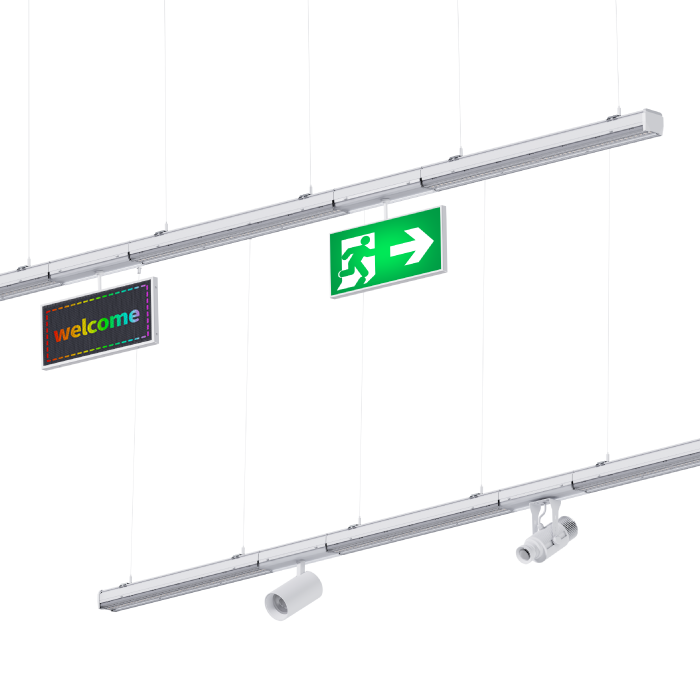

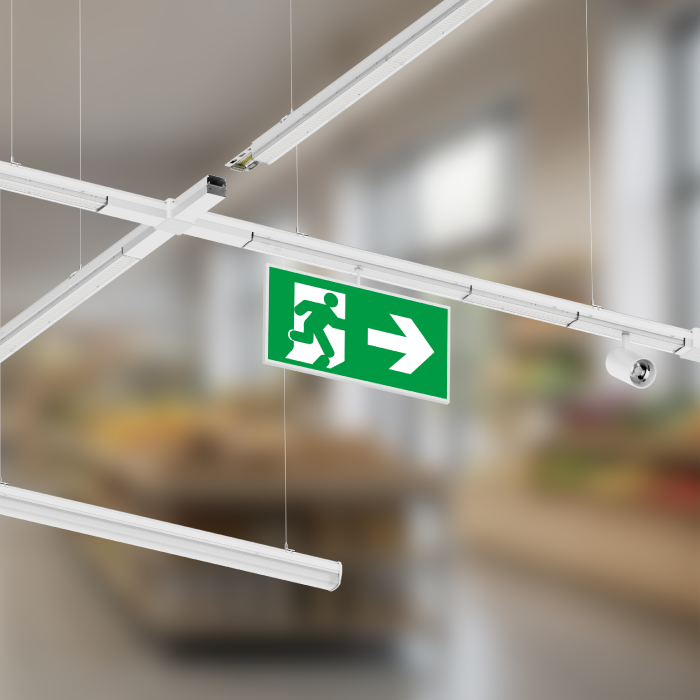

  • Multiple Module Choices Supports diverse functions with modules for spotlight, projector, display screen, emergency, and exit sign applications.

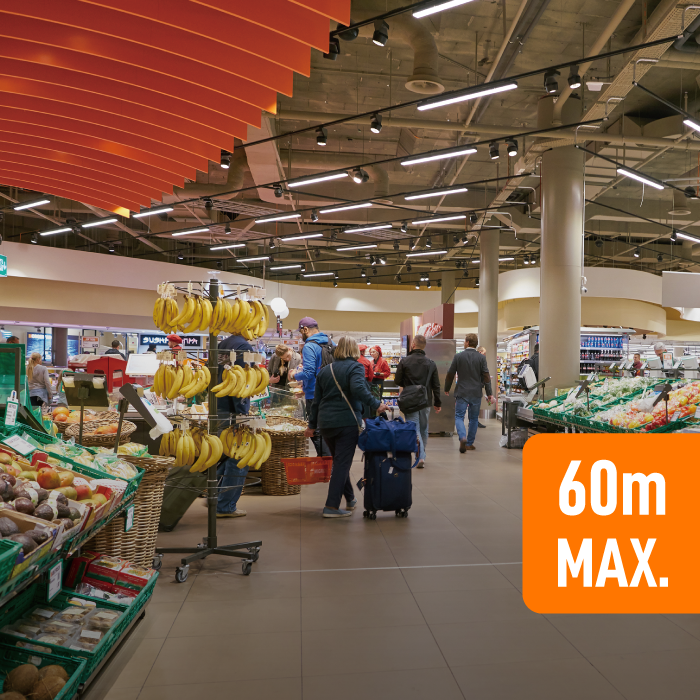

  • Up to 60M Continuous LED Trunking System A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. Seamless Integration up to 60m with pre-assembled connectors for a perfectly continuous line without visual interruption.

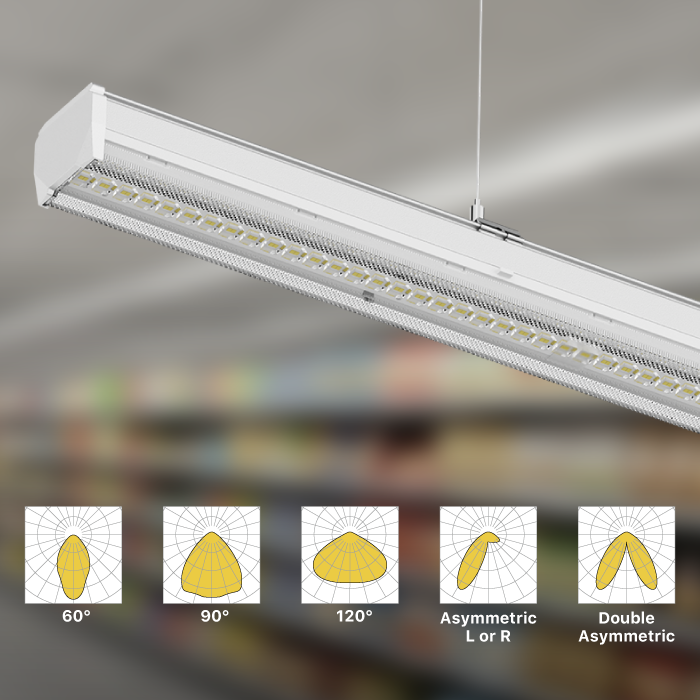

  • Various Beam Optics Multiple beam angle options – 60°, 90°, and 120° – meet different application requirements, while asymmetric beams (R/L 20°, RL 25°) provide precise lighting control for special layouts.

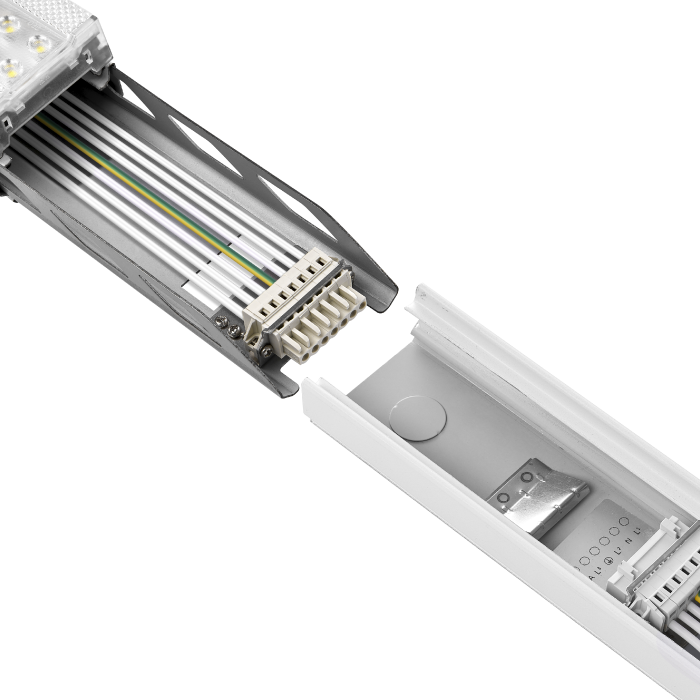

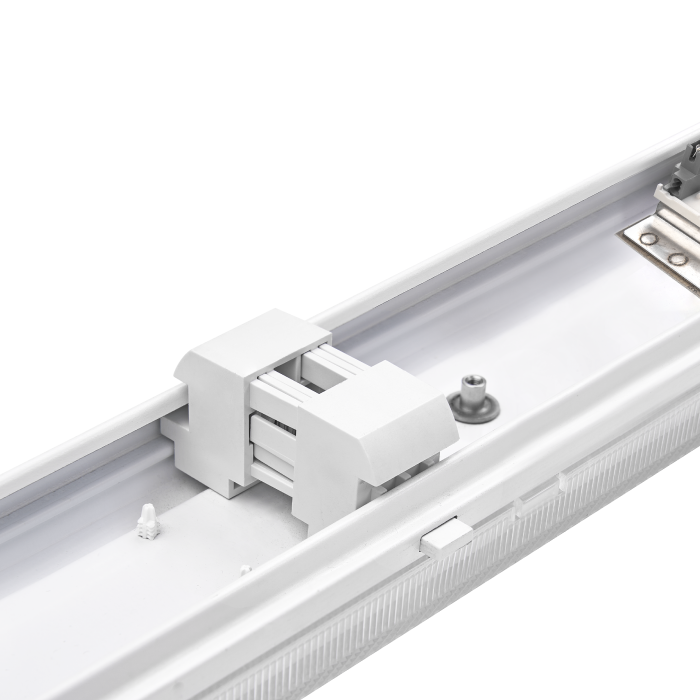

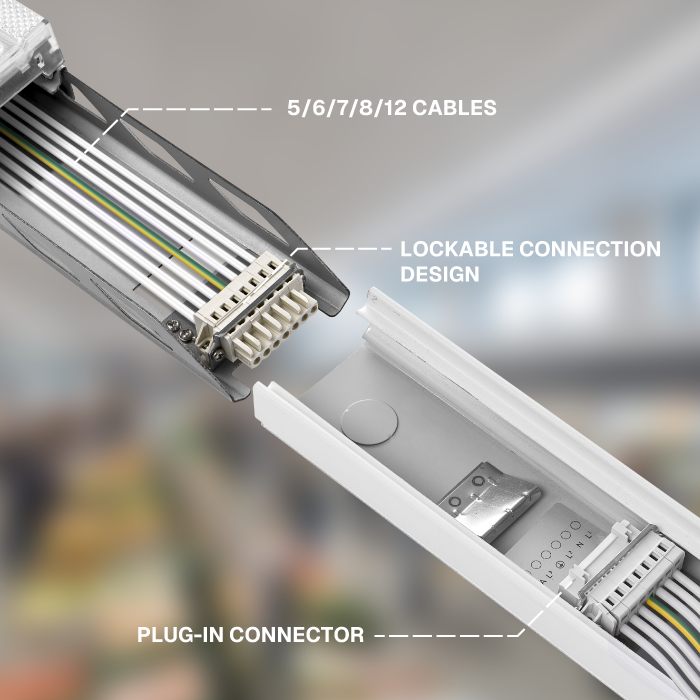

  • Plug & Play, Tool-free Installation Pre-wired Trunking Rail saves significant time and labor cost, ensuring fast and efficient project setup.


TECHNICAL SPECIFICATIONS

Swipe right to view

Product Item No Voltage(V) Power(W) Efficacy Beam Angle CRI Dimensions(L*W*H)
INO LT0101-1580L-7DA AC 220-240V 80W 160 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 1500*67*32.5mm
INO LT0101-1550L-7DA AC 220-240V 50W 180 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 1500*67*32.5mm
INO LT0101-1550L-6CHR AC 220-240V 50W 180 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 1500*67*32.5mm
INO LT0101-7530L-5S AC 220-240V 30W 160 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 750*67*32.5mm
INO LT0101-1580L-5S AC 220-240V 80W-75W-70W-60W 160 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 1500*67*32.5mm
INO LT0101-1550L-5S AC 220-240V 50W-45W-35W-30W 180 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 1500*67*32.5mm
INO T0101-22100L-5S AC 220-240V 100W 160 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 2250*67*32.5mm
INO LT0101-2280L-5S AC 220-240V 80W-75W-70W-60W 160 lm/W 60°/90°/120° R/L: 20° RL: 25° ＞80 2250*67*32.5mm

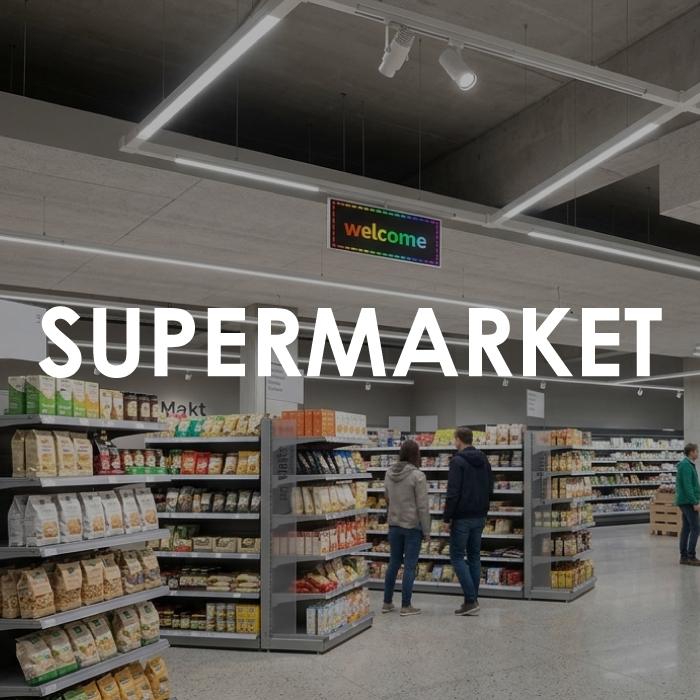

APPLICATION
