VIKA
Eco-friendly Materials
3 Power & 3 CCT Adjustable
Customization Lens Roll-Forming Process
scroll down
-
CCT ADJUSTABLE
-
POWER ADJUSTABLE
-
IP RATED
-
LINKABLE
-
FLICKER FREE
-
WARRANTY
-
ENERGY GRADE
-
Certification
PRODUCT Features
- LED SourceType: SMD 2835
- Driver Type: IC Driver
- Material: Aluminum +PC
- CRI: Ra>80
- DF: ≥0.9
- Color of Housing:White / Black
- Mounting: Surface / Suspension
MORE DETAIL
-

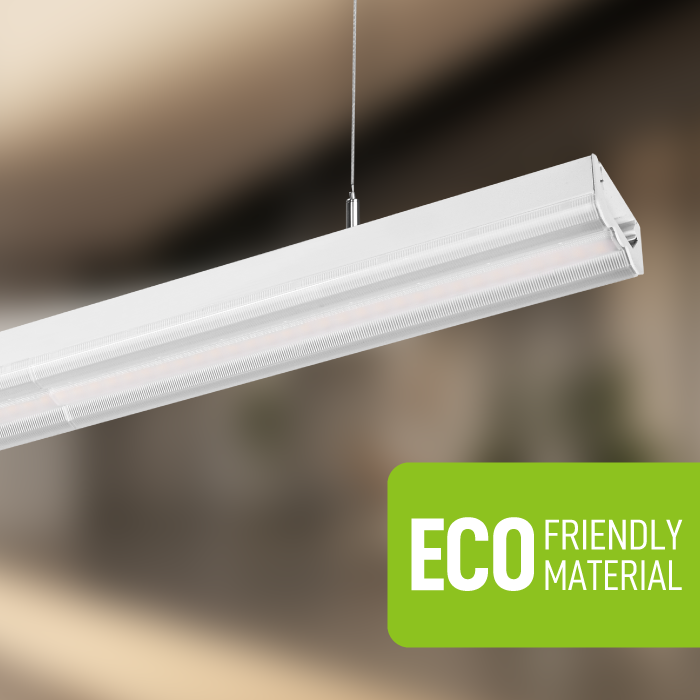

Eco-friendly Materials Features an eco-friendly color-coated steel casing that is scratch-resistant, corrosion-resistant, and environmentally friendly, offering high structural strength.
-

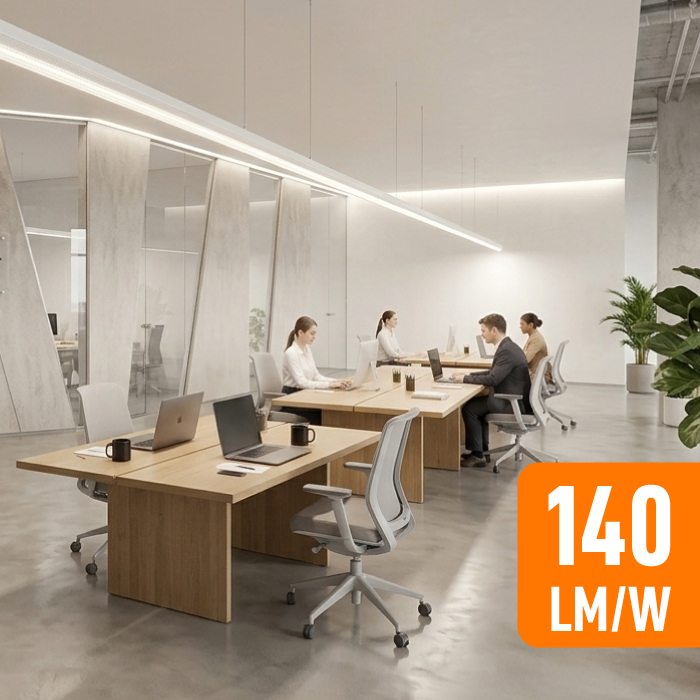

Up to 140lm/W, High-lumen Features high-brightness LED chips and a special optical design, delivering soft, evenly distributed light.
-

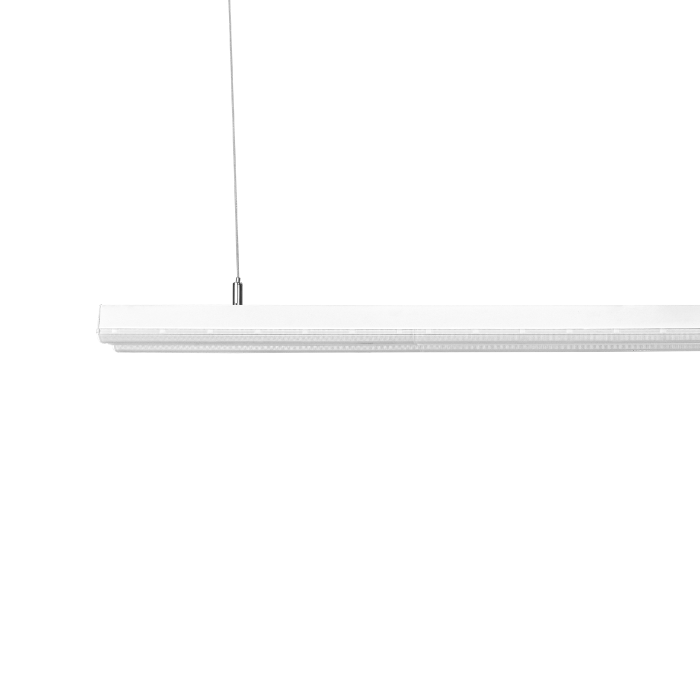

Suitable for various installation methods Ultra-slim, minimalist design with a stylish, elegant look; suitable for low-ceiling environments and compatible with various mounting methods—including suspension, surface mounting, and linear baffle installation—offering both simplicity and flexibility.
-

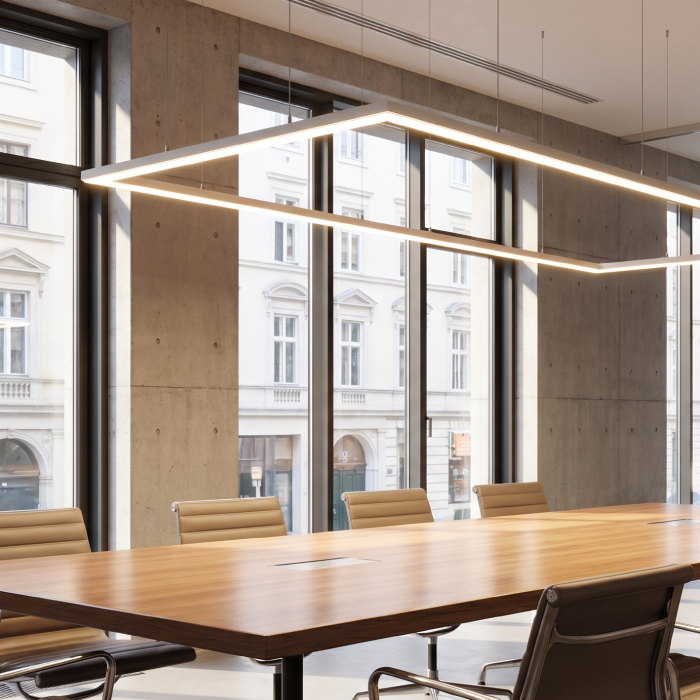

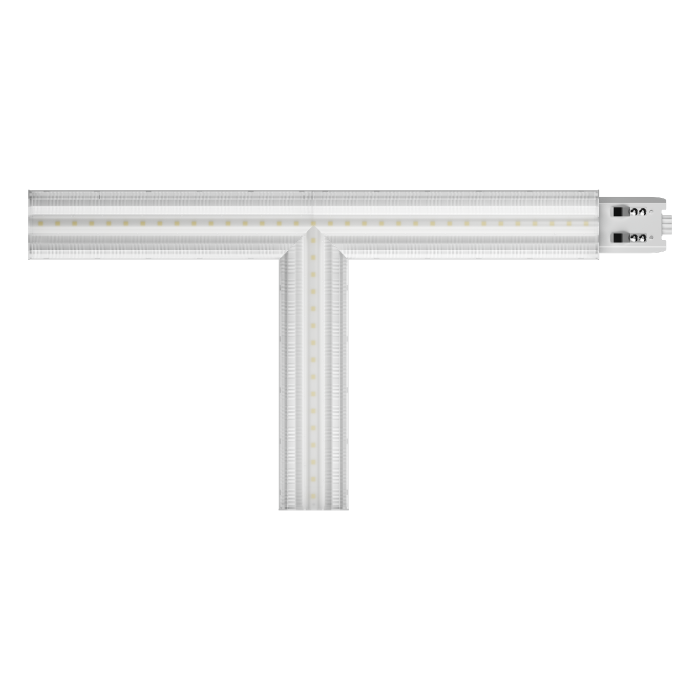

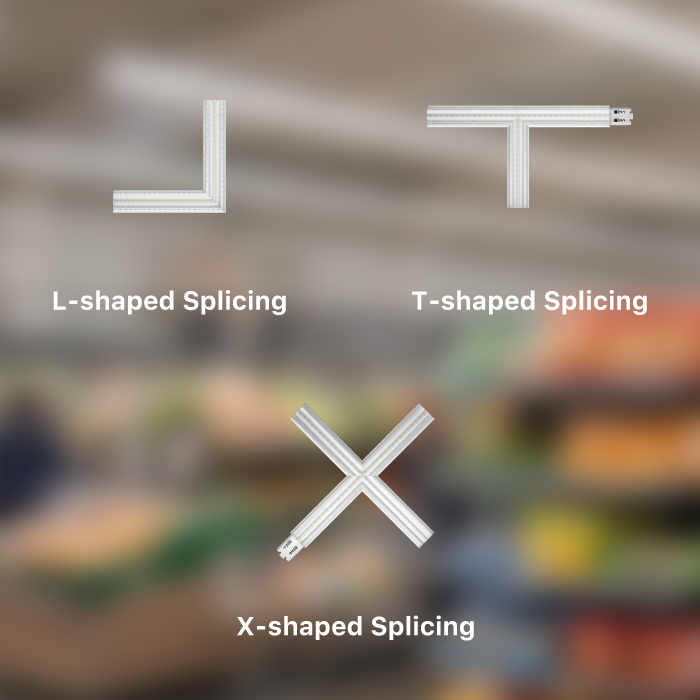

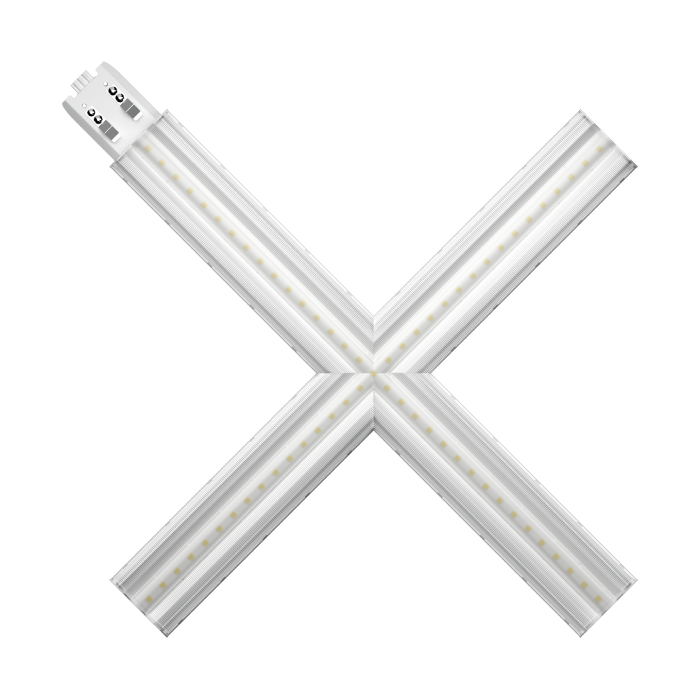

Various corner designs L-, T-, and X-shaped illuminated corner designs for quick assembly.
-

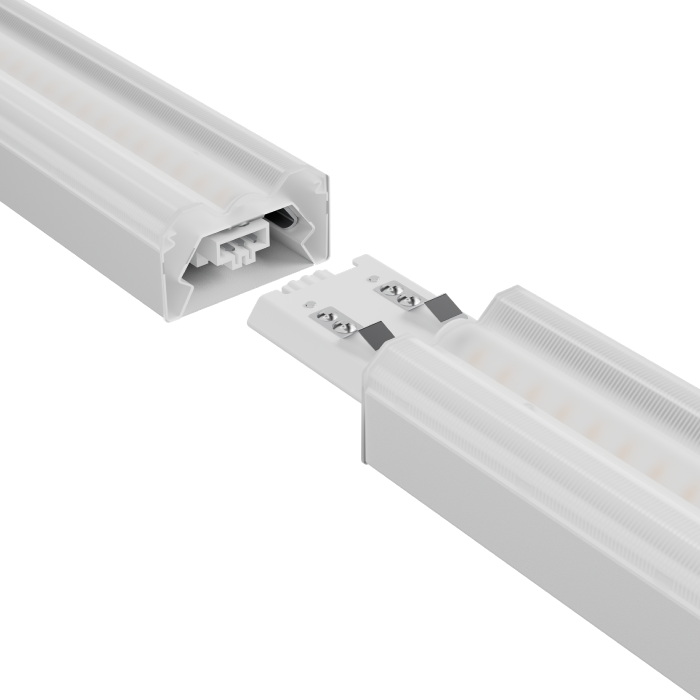

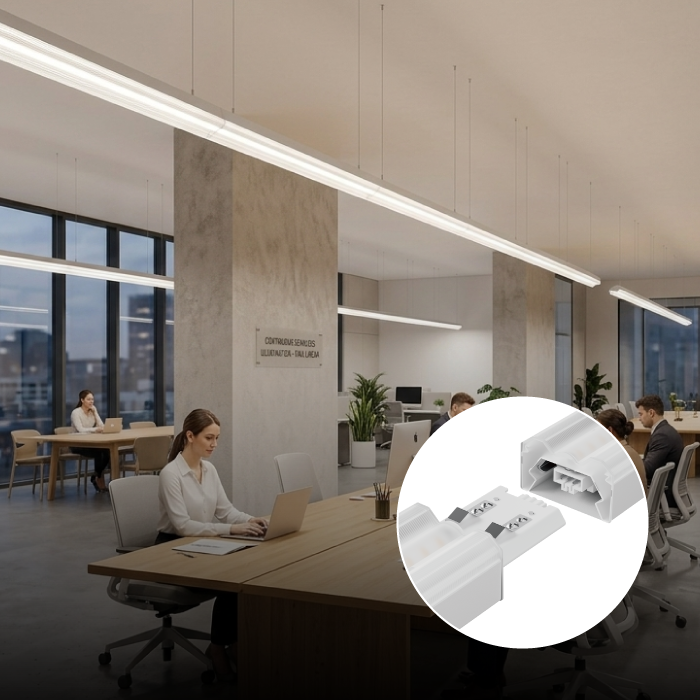

Seamless splicing Power cables are routed inside the luminaires to enable interconnection, allowing for a maximum of 40 units to be linked together.
-

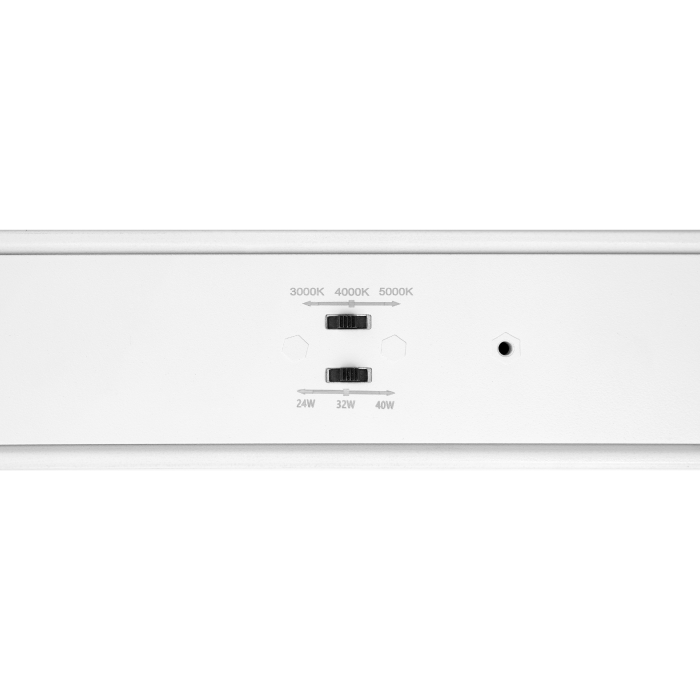

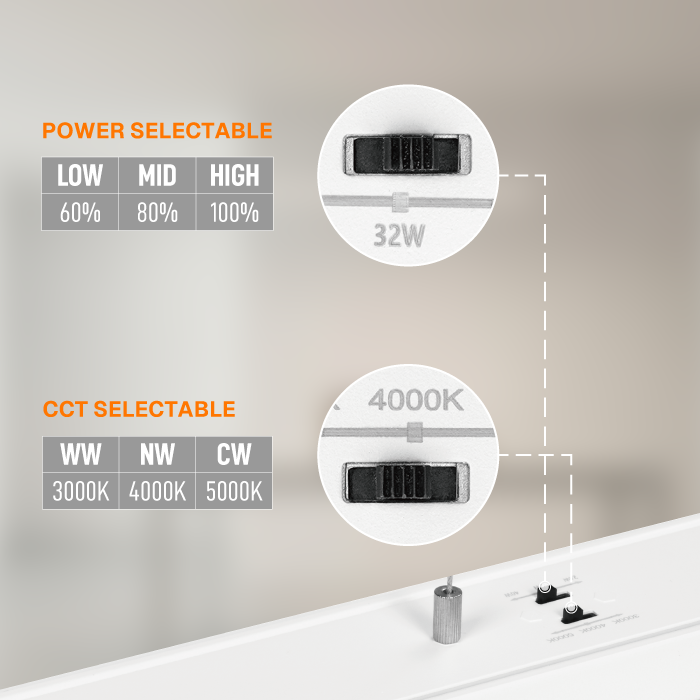

3 Power & 3 CCT Adjustable Luminous efficacy of 140 lm/W at 4000K; features DIP switch settings for power, 3-level current adjustment, and 3-level color temperature adjustment.
TECHNICAL SPECIFICATIONS
Swipe right to view
| Product | Item No | Voltage(V) | Power(W) | Efficacy | Beam Angle | CRI | Dimensions(L*W*H) |
| VIKA | LN1801-1240APC | AC 220-240V | 40W-32W-24W | 140 lm/W | 60°/90°/120° R/L: 20° RL: 25° | ＞80 | 1260*60*35mm |
| VIKA | LN1801-1240APC | AC 220-240V | 50W-40W-30W | 140 lm/W | 60°/90°/120° R/L: 20° RL: 25° | ＞80 | 1560*60*35mm |

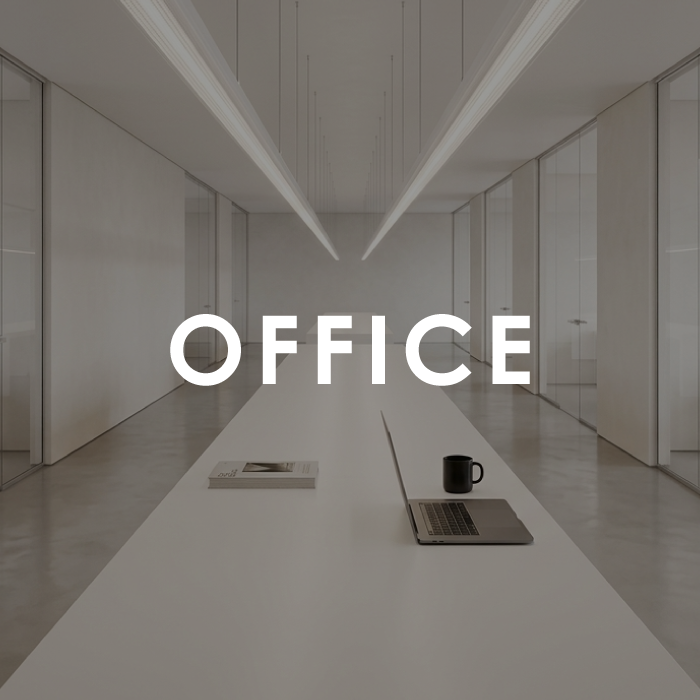

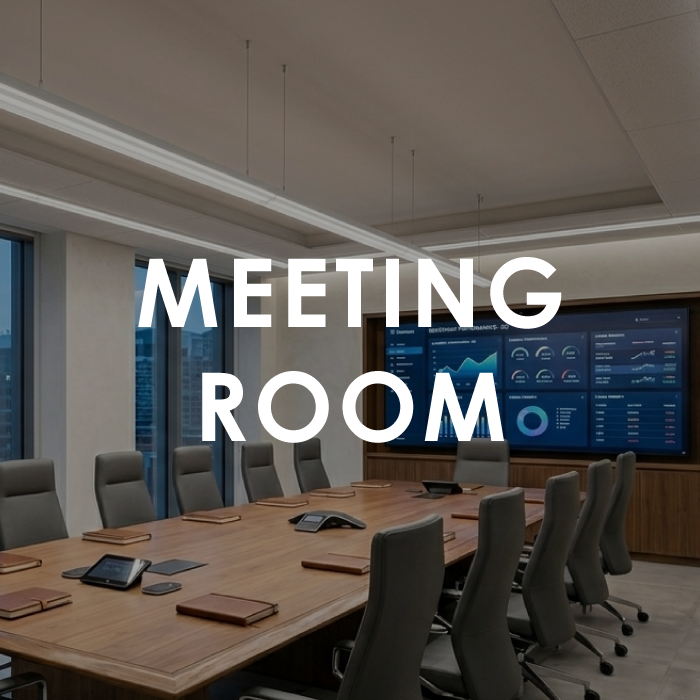

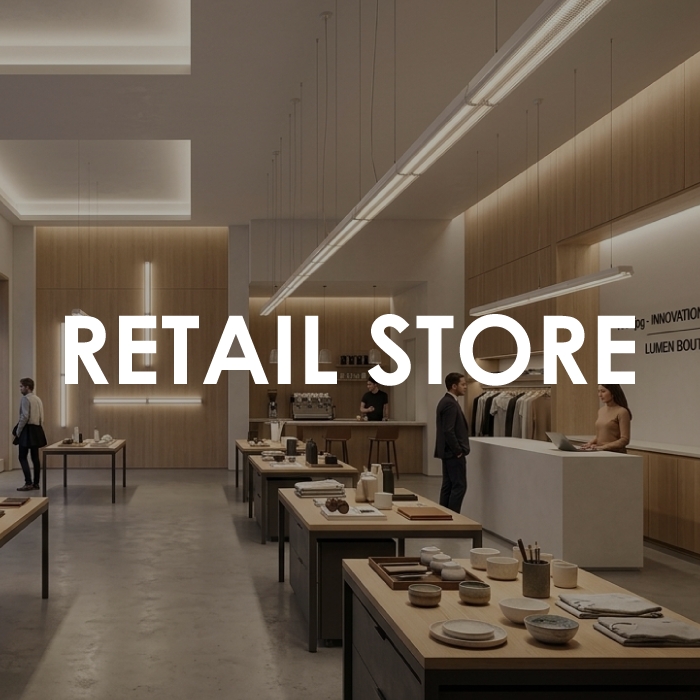

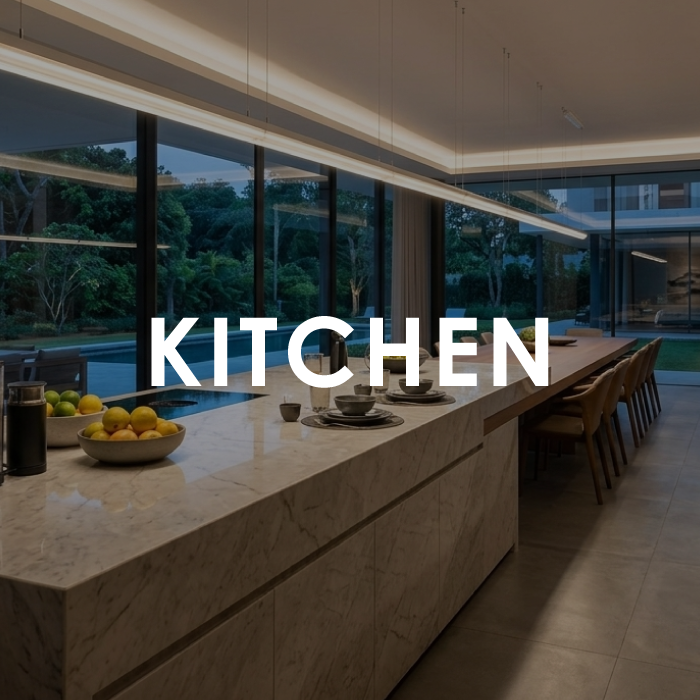

APPLICATION
