DIONE

Modular Design

Plug & Play PIR Sensor

3 Hours Emergency Pack

3 CCT & 4 Power Selectable

Tool-less Linkable Max. 2000W

  • 3 CCT Changeable

  • 4 Power Selectable

  • microwave sensor

  • linkable

  • IP RATED

  • IK RATED

  • ENERGY GRADE

PRODUCT Features

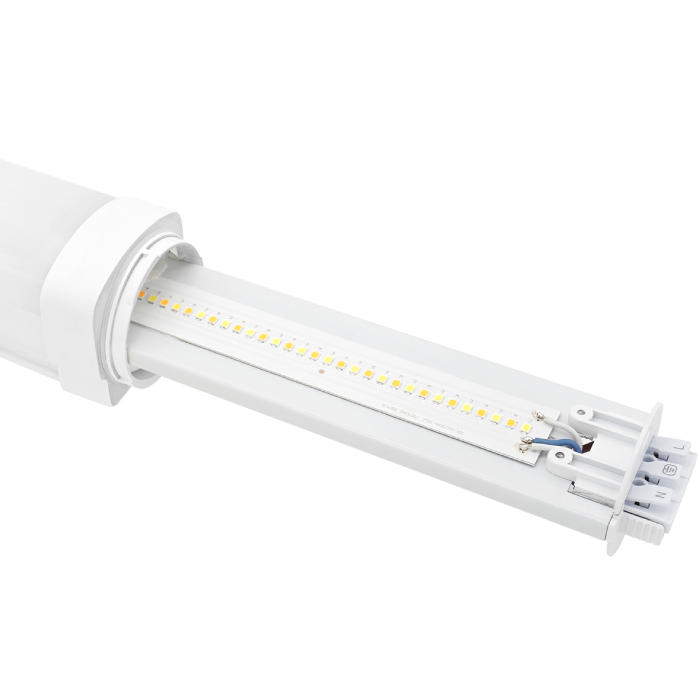

  • LED SourceType: SMD 2835
  • Driver Type: IC Driver
  • Material: High-Impact Polycarbonate (PC)
  • CRI: Ra>80
  • DF: ≥0.9
  • Color of Housing: White
  • Mounting:Surface/Suspended

MORE DETAIL

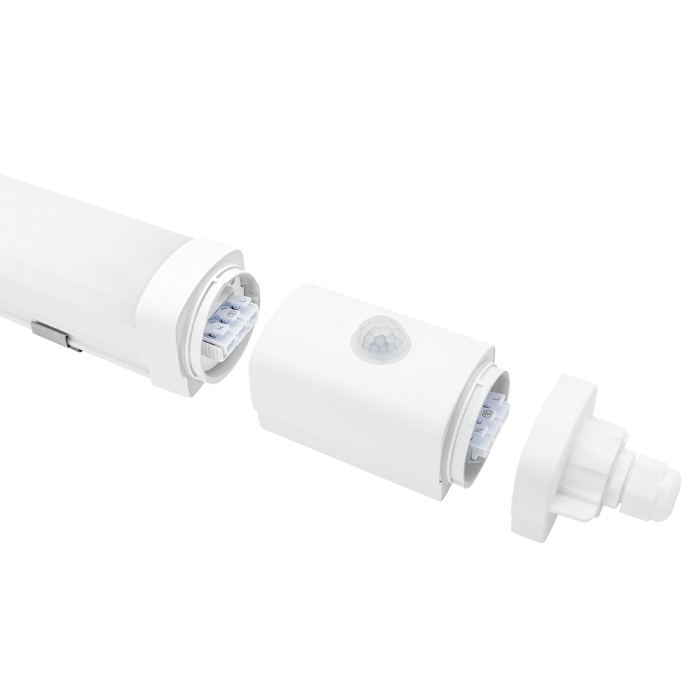

  • Modular Design Supports single installation or cable-linked Seamless Connection, allowing for continuous linear light rows without dark spots. It allows multiple fixtures to be linked together through electric cables, which offers flexible installation options.

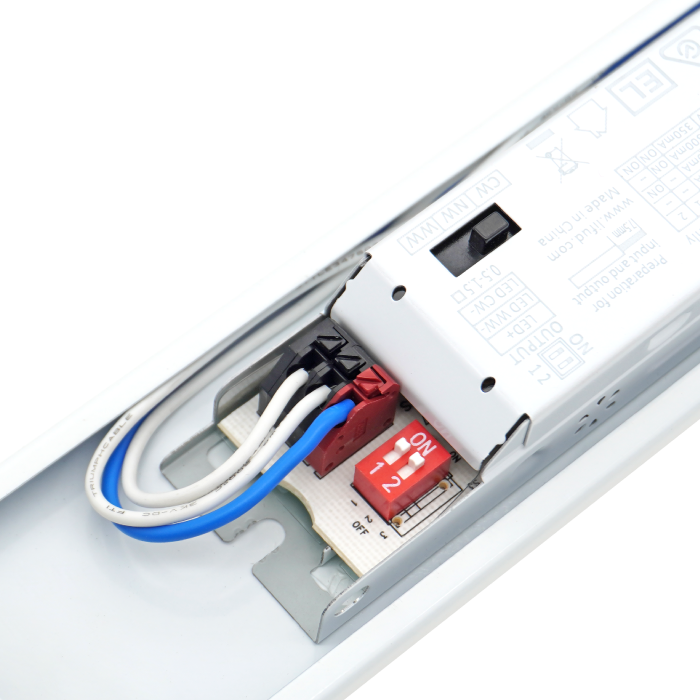

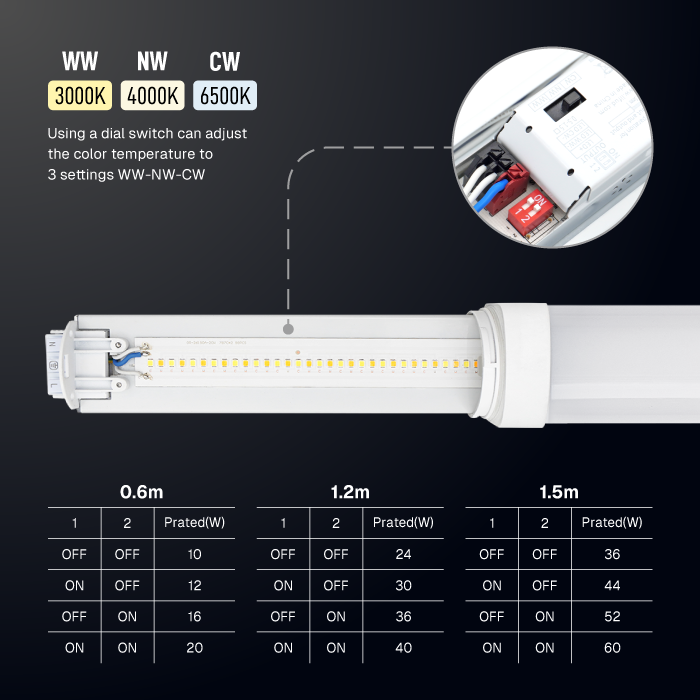

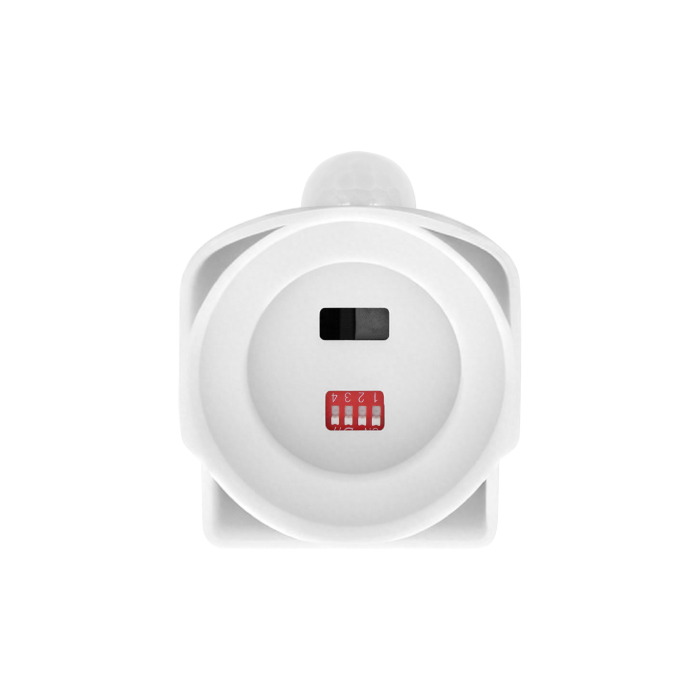

  • 3 CCT & 4 Power Adjustable by DIP Switch Choose between Warm(3000K), Neutral(4000K), and Cool(6500K) light with a simple switch for the perfect ambiance. Equipped with DIP switch for 4 power levels , ensuring adaptability to different energy-saving needs.

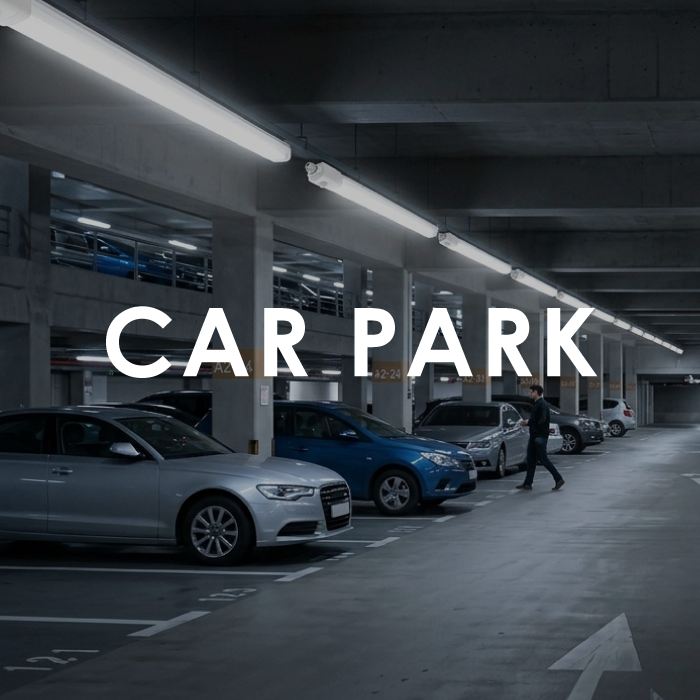

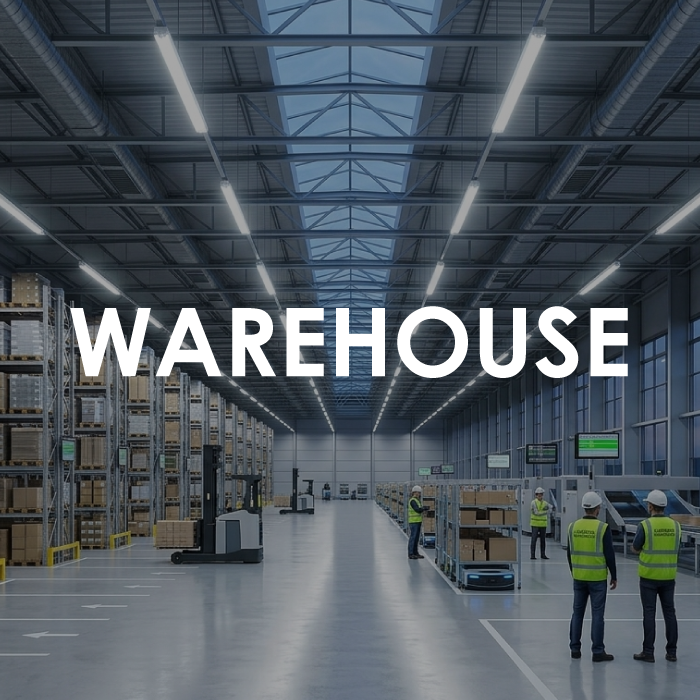

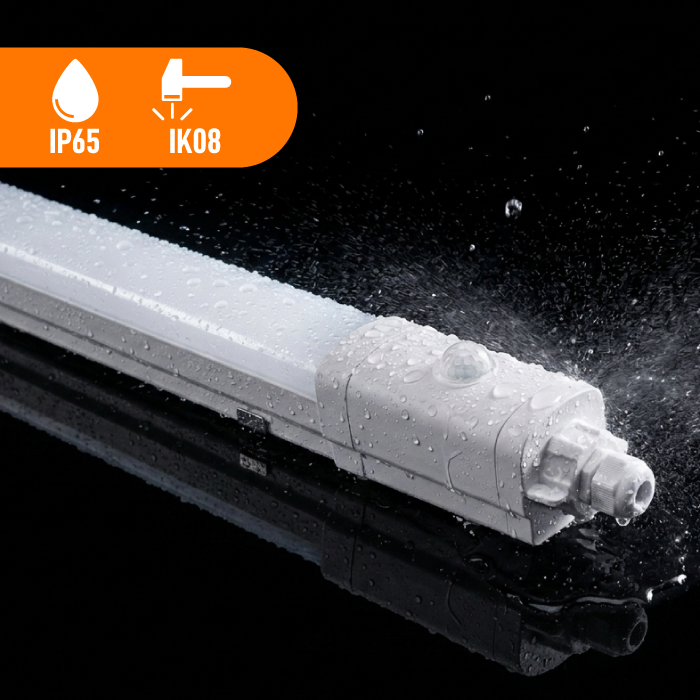

  • IP65 & IK08 Ruggedized Construction Full PC co-extrusion housing provides IP65 protection and IK08 impact resistance, ideal for car parks, warehouses, and transit hubs.

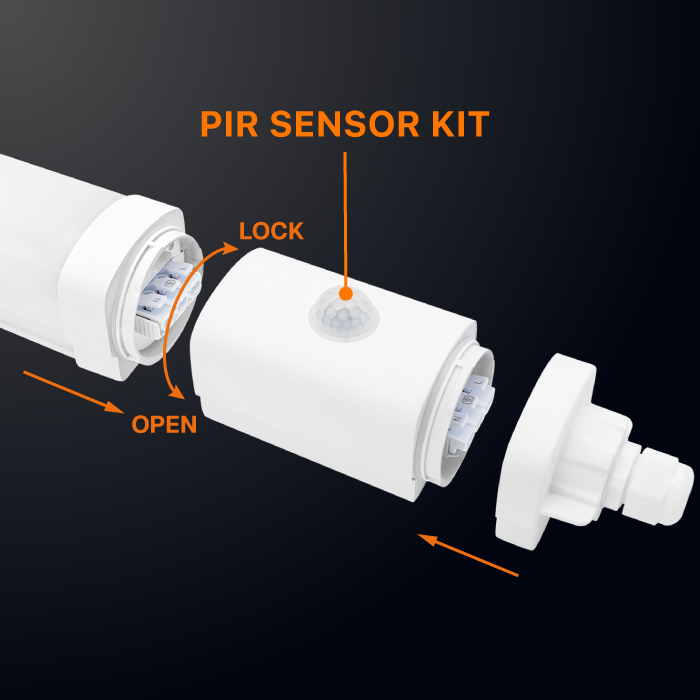

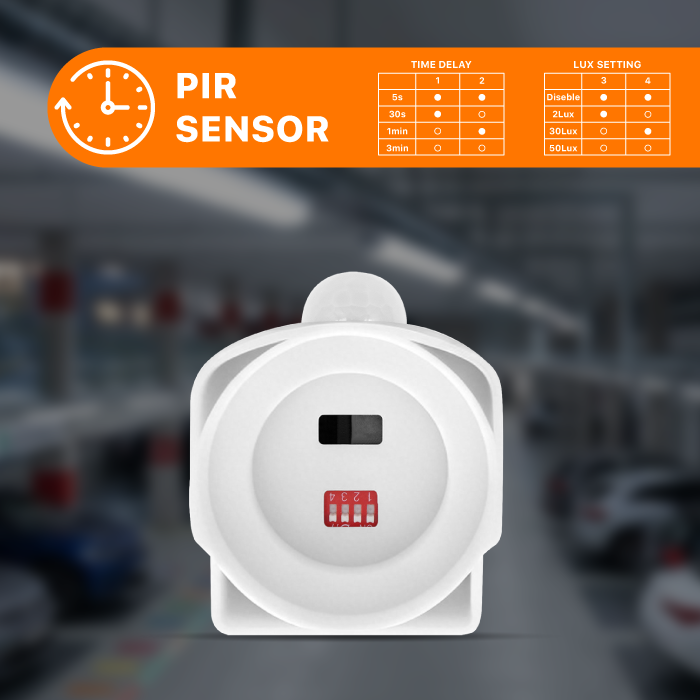

  • Plug-and-Play PIR Sensor Pre-wired for Quick-Connect PIR sensors, enabling automated energy management without specialized tools. Features a factory-preset 5s-180s Hold Time to ensure consistent illumination during task transitions while maximizing energy savings during vacancy.

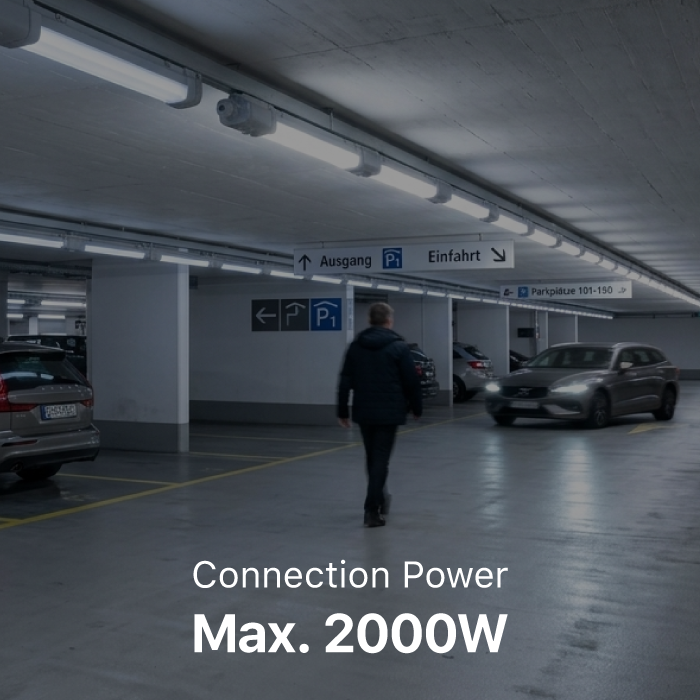

  • Tool-less Linkable (Optional) Supports daisy-chaining of multiple lights (maximum power of 300W with PIR, 2000W without PIR), offering flexible installation options.

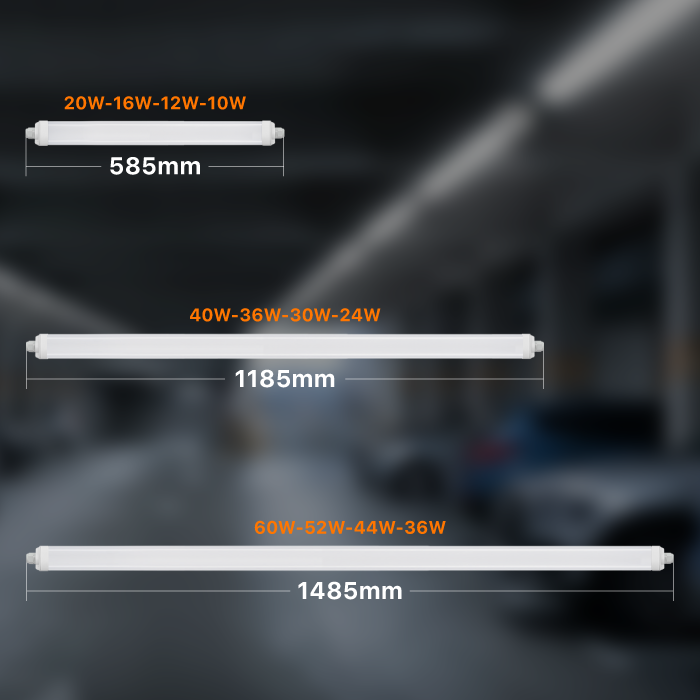

  • 3 Sizes for Different Applications LED Tri-proof Light available in sizes of 585mm, 1185mm, and 1485mm, with power options of 10W-20W, 24W-40W, and 36W-60W.

TECHNICAL SPECIFICATIONS

Swipe right to view

Item Number Voltage(V) Power(W) Efficacy Beam Angle CRI DF Dimension(L*W*H)
TRI3401-20 AC 220-240V 20W-16W-12W-10W 120 lm/W or 160 lm/W 120° ＞80 ≥0.9 585*60*60mm
TRI3401-40 AC 220-240V 40W-36W-30W-24W 120 lm/W or 160 lm/W 120° ＞80 ≥0.9 1185*60*60mm
TRI3401-60 AC 220-240V 60W-52W-44W-36W 120 lm/W or 160 lm/W 120° ＞80 ≥0.9 1485*60*60mm

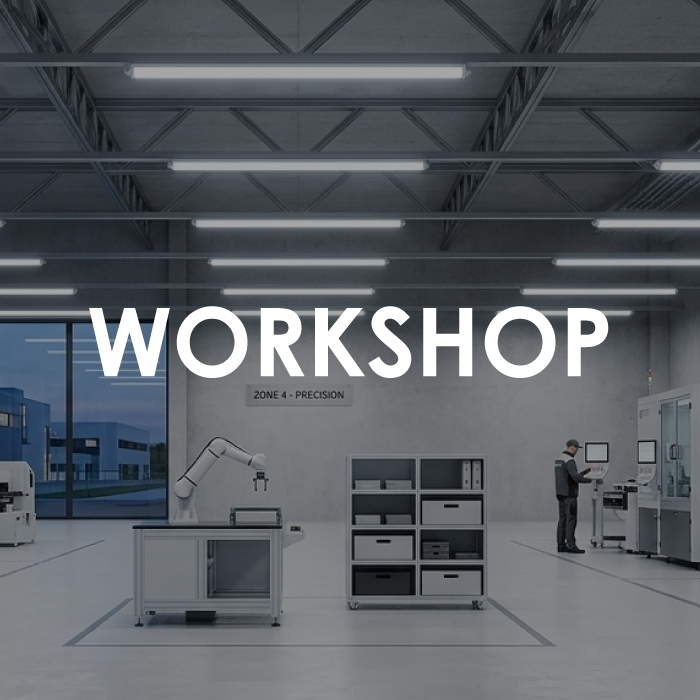

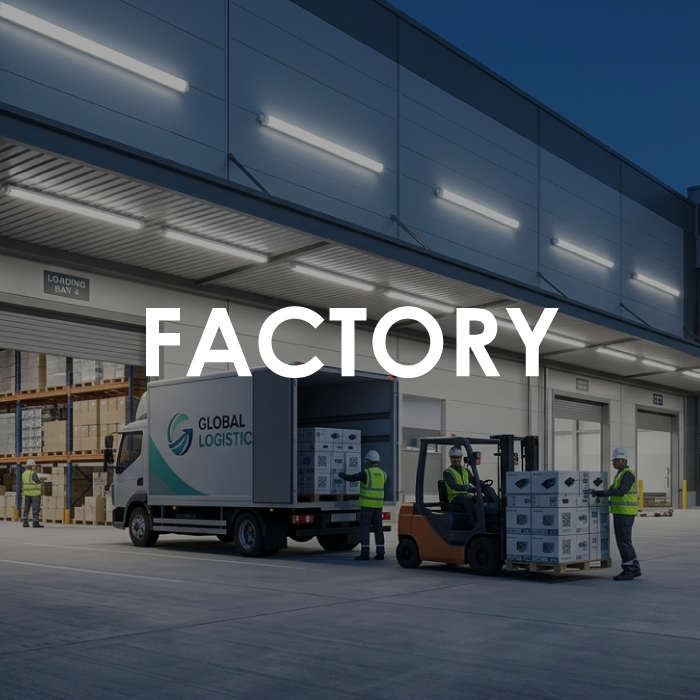

APPLICATION
