STYX

12 SKU-in-1 | Easy Linkable lmicrowave & Emergency Optional

  • IP RATED

  • IK RATED

  • 3CCT Changeable

  • 3 POWER AJUSTABLE

  • microwave sensor

  • emergency

  • linkable

  • warranty

PRODUCT Features

  • LED SourceType: SMD 2835
  • Driver Type: IC Driver
  • CCT: PC
  • CRI: Ra>80/90
  • DF: ≥0.9
  • Color of Housing: Grey
  • Mounting:Surface/Suspended/Hook

MORE DETAIL

  • Easy Access Clip-on Design The cover is secured with easy-release latches, allowing you to simply unlatch and open the cover for quick access.

  • Even Light Distribution With a lumen output of 155lm/W, it provides uniform lighting without flickering or dark spots, creating a comfortable and well-lit environment.

  • 4 Power and 3 Color Selectable With 3000K/4000K/6500K, 4 adjustable power levels, our lights offer unmatched flexibility. Easily select the perfect wattage to meet the specific needs of your projects.


  • Microwave Motion Sensor An integral Microwave Sensor module is available, this allows the ceiling light to switch on and off automatically when it senses movement. The DlP switch on the microwave sensor allow you to customize the Sensitivity, Hold-time, Daylight Threshold.
    Sensitivity: 100%, 75%, 50%, 25%
    Hold-time: 5s-30min
    Daylight Threshold: 2Lux, 10Lux, 50Lux, Disable

  • 3H Emergency Power Supply Equipped with a 3.2V/3000mAh LiFePO4 battery, it ensures reliable backup lighting for up to 3 hours during power outages.

  • Tool-less Linkable The interconnectable design allows multiple fixtures to be linked together (Max. 800W) through electric cables, which offers flexible installation options.


  • IP65 Waterproof & IK08 Impact Protection With an IP65 & IK08 rating, this tri-proof light is completely dust-tight and highly resistant to water ingress, making them suitable for both indoor and outdoor applications.

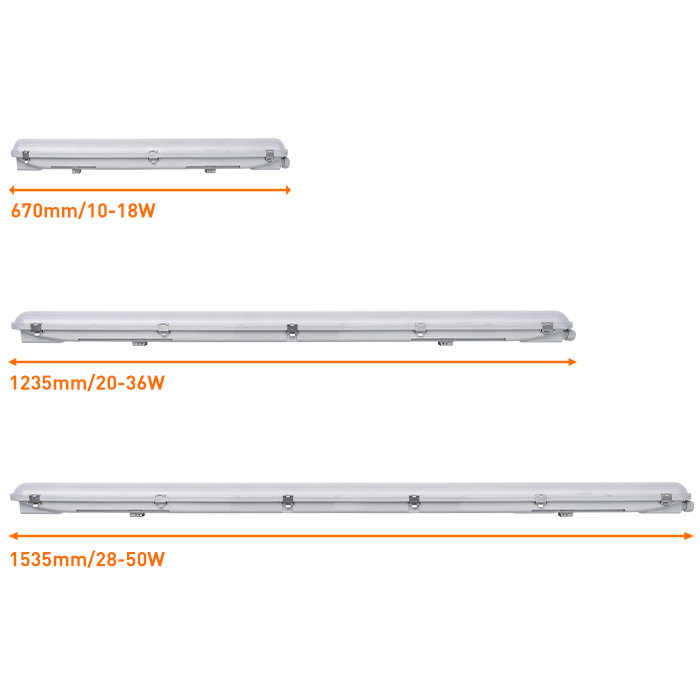

  • Comes in 2ft, 4ft, 5ft LED Tri-proof Light available in sizes of 600mm, 1200mm, and 1500mm, with power options of 10W-18W, 20W-36W, and 28W-50W.

  • Suspension & Surface mounting For easy installation, you can choose between Surface or Suspension mountings, allowing you to select the method that best suits your space.

TECHNICAL SPECIFICATIONS

Swipe right to view

Item Number Voltage(V) Power(W) Efficacy Beam Angle CCT Material Dimension(L*W*H)
TR11601-18 AC 220-240V 18W-15W-13W-10W 155Im/W 120° 3000K-4000K-6500K 301S/S+PC 670*79*68mm
TR11601-40 AC 220-240V 40W-35W-29W-23W 155Im/W 120° 3000K-4000K-6500K 301S/S+PC 1235*79*68mm
TR1601-55 AC 220-240V 55W-47W-39W-32W 155Im/W 120° 3000K-4000K-6500K 301S/S+PC 1535*79*68mm

APPLICATION
