THULE
Linkable | Aluminum Housing | 3 CCT & 4 Power Selection
scroll down
-
3 CCT Changeable
-
4 Power Selectable
-
linkable
-
FLICKER FREE
-
IP RATED
-
WARRANTY
-
Certification
PRODUCT Features
- LED SourceType: SMD 2835
- Driver Type: IC Driver
- Material: Aluminum + PC
- CRI: Ra>80
- DF: ≥0.9
- Color of Housing: White
- Mounting:Surface
MORE DETAIL
-

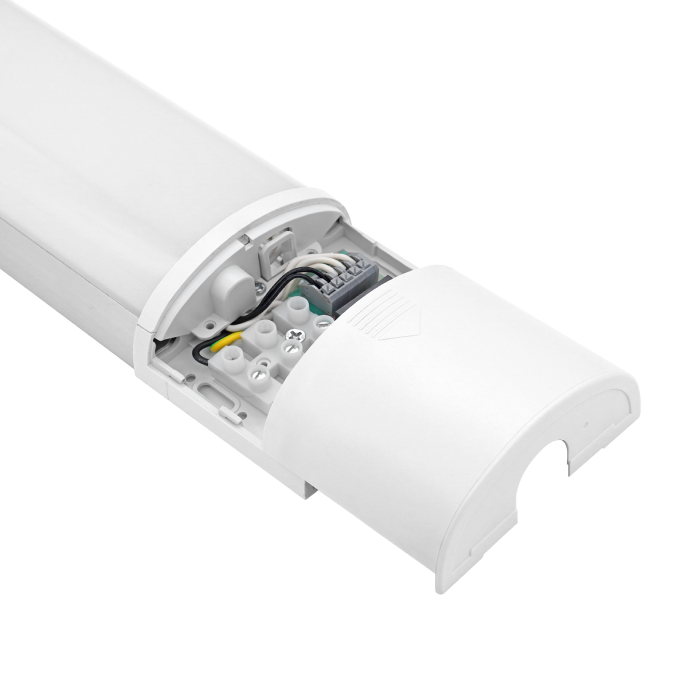

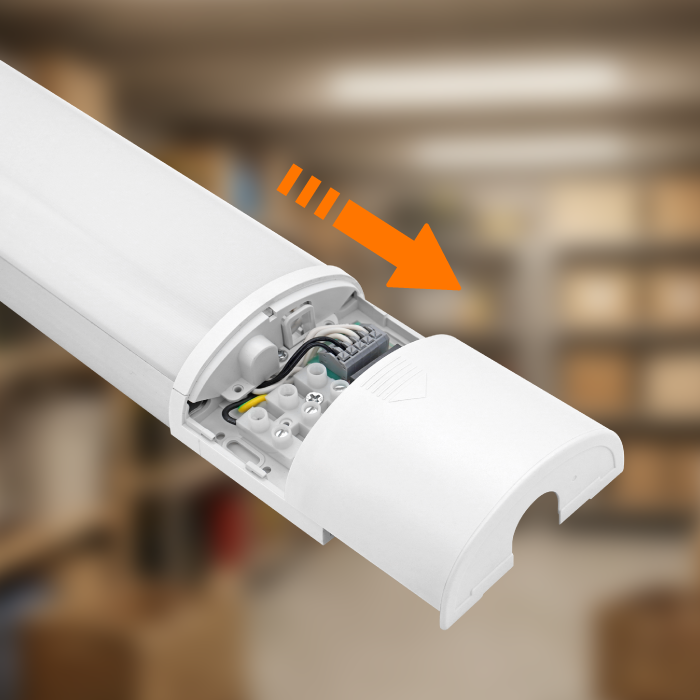

End Cap Removable for Easy Access The end cap opens easily, allowing quick CCT and power adjustments, as well as fast wiring during installation.
-

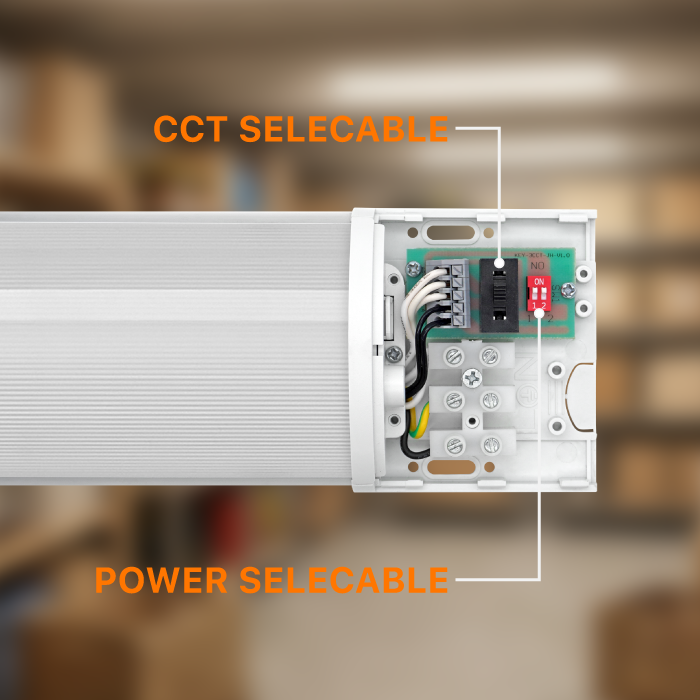

4 Power & 3 CCT Adjustable by DIP Switch Equipped with DIP switch for 4 power levels and 3 CCT options, ensuring adaptability to different environments and energy-saving needs. Significantly reduces SKU inventory requirements by consolidating 12 potential configurations into a single fixture.
-

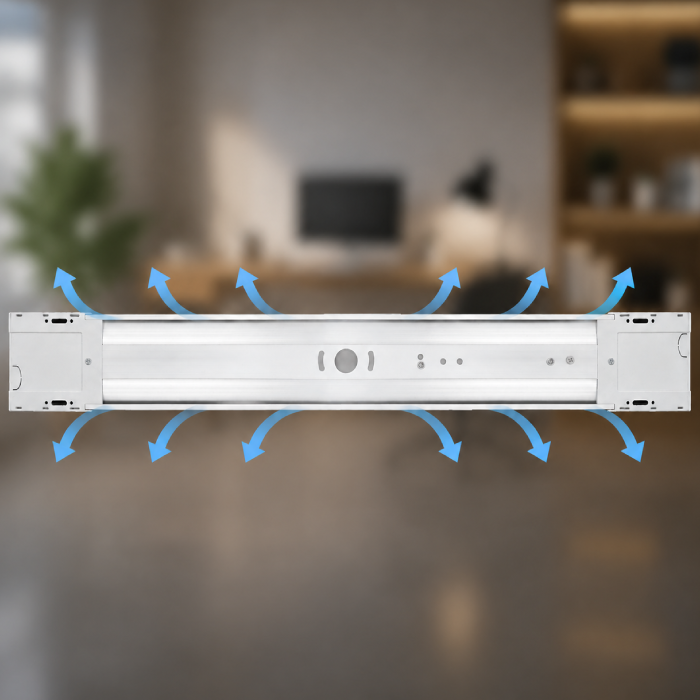

Efficient Heat Dissipation Housed by pure aluminum alloyor extended product life and good heat dissipation.
-

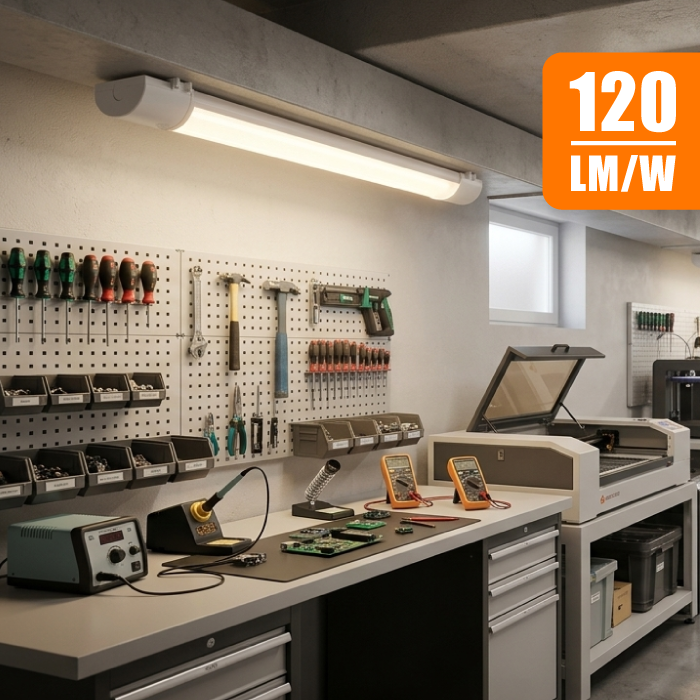

Even Light Distribution With a lumen output of 120lm/W, it provides uniform lighting without flickering or dark spots, creating a comfortable and well-lit environment.
-

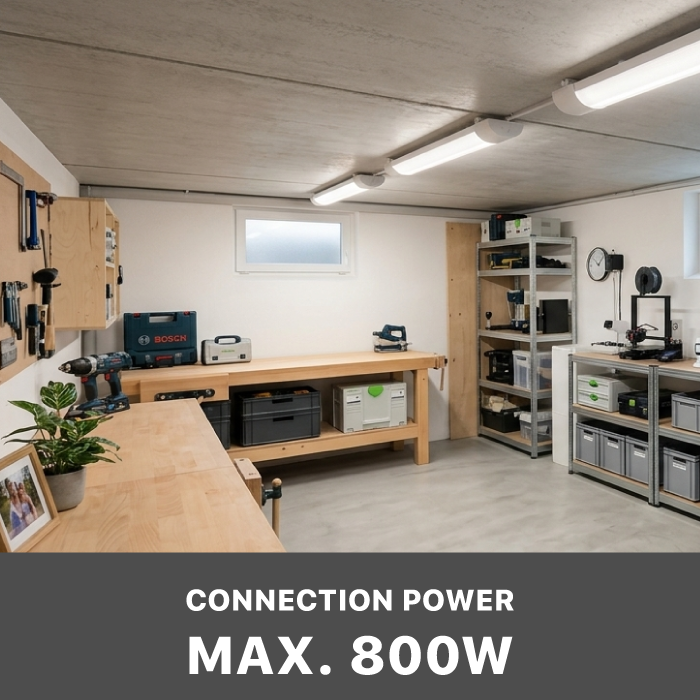

Tool-less Linkable (Optional) The interconnectable design allows multiple fixtures to be linked together (Max. 800W) through electric cables, which offers flexible installation options.
-

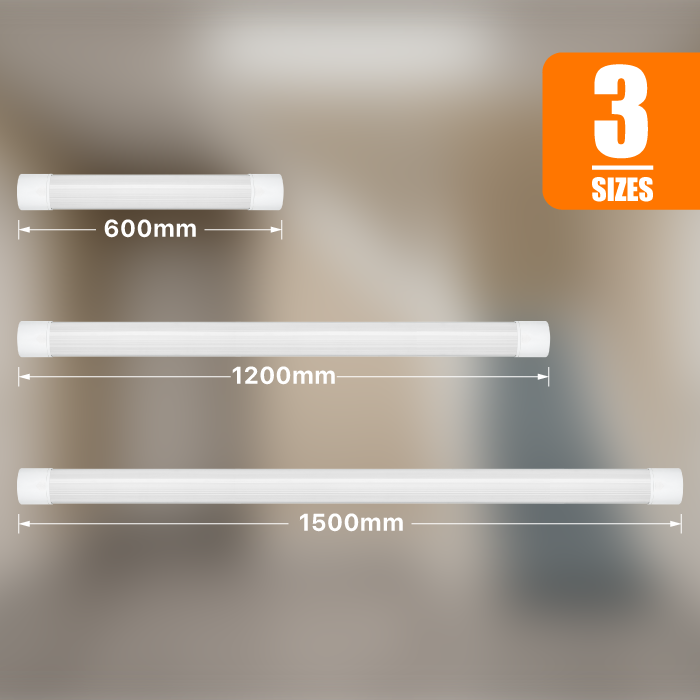

Comes in 2ft, 4ft, 5ft LED Tri-proof Light available in sizes of 600mm, 1200mm, and 1500mm, with power options of 12W-20W, 20W-40W, and 30W-60W.
TECHNICAL SPECIFICATIONS
Swipe right to view
| Item Number | Voltage(V) | Power(W) | Efficacy | Beam Angle | CRI | DF | Dimension(L*W*H) |
| BA1101-20 | AC 220-240V | 20W(20W-18W-14W-12W) | 120 lm | 110° | ＞80 | ≥0.9 | 600*85*38mm |
| BA1101-40 | AC 220-240V | 40W(40W-35W-28W-20W) | 120 lm | 110° | ＞80 | ≥0.9 | 1200*85*38mm |
| BA1101-60 | AC 220-240V | 60W(60W-48W-40W-30W) | 120 lm | 110° | ＞80 | ≥0.9 | 1500*85*38mm |

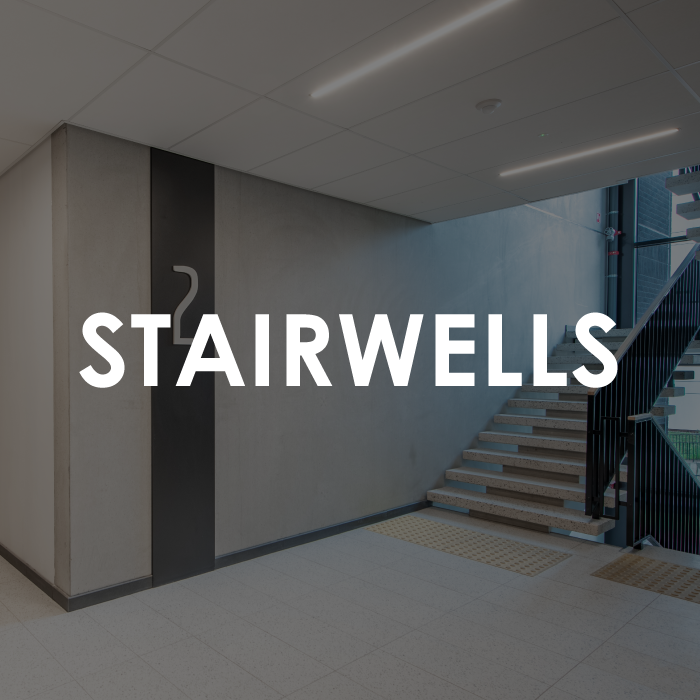

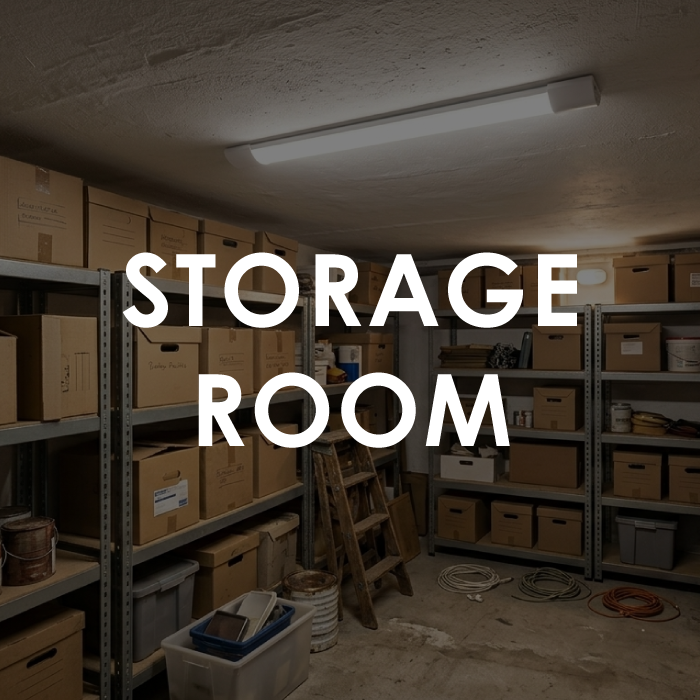

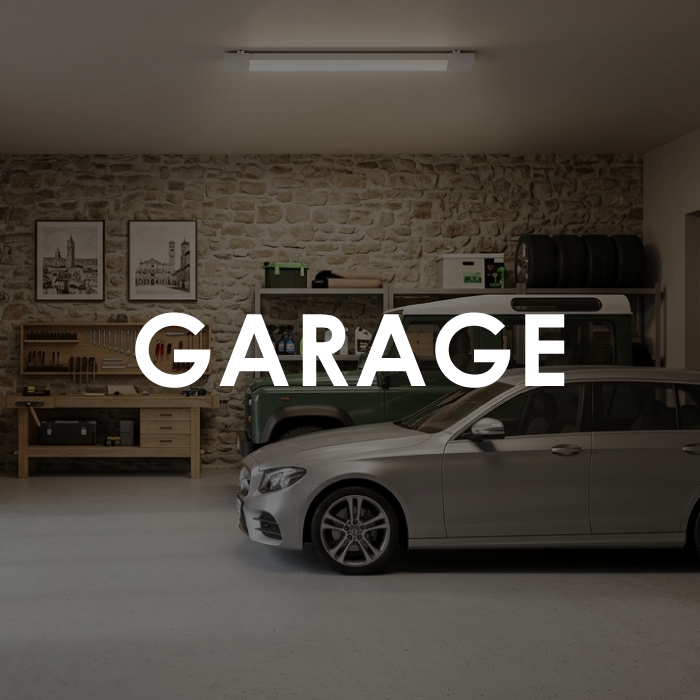

APPLICATION
